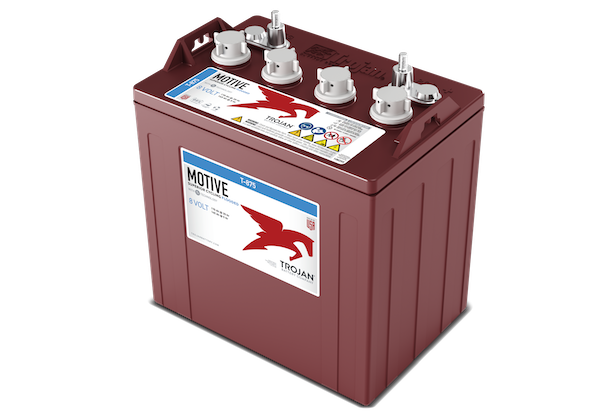

Battery Overview
Trojan's T-875 8V flooded lead acid battery brings a new class of deep cycle technology to your power needs. Its outstanding deep cycle capability and versatility make it a reference not only for golf cart owners but also for renewable energy (solar), aerial lifts, scrubber machines, and electrical material handling equipment, among many other applications.
Part of the flagship Signature Line, it features Alpha Plus® paste with T2 Technology for maximum sustained performance, longer life, and increased total energy. The Maxguard T2 advanced separator sustains performance, providing exceptionally longer battery life and significantly lowering your operating costs, while the HydroLink™ single-point watering system makes maintenance easy and safe.
Battery Specification
| Brand | Trojan |
| Model Number | T-875 |
| Voltage | 8V |
| Group Size | GC8 |
| Technology | Flooded Lead Acid |
| Product Line | Signature Line |
| Capacity Minutes @25 Amps | 295 |
| Capacity Minutes @56 Amps | 117 |
| Capacity Amp-Hours 5-Hr Rate | 145 Ah |
| Capacity Amp-Hours 10-Hr Rate | 155 Ah |
| Capacity Amp-Hours 20-Hr Rate | 170 Ah |
| Capacity Amp-Hours 100-Hr Rate | 189 Ah |
| Energy | 1.51 kWh |
| Length | 10.27 in (261 mm) |
| Width | 7.10 in (180 mm) |
| Height | 11.14 in (283 mm) |
| Weight | 63 lbs (29 kg) |
| Operating Temperature | 4°F to 113°F (-20°C to +45°C) |
| Self-Discharge | 5-15% per month |
| Terminal Type 1 | Embedded Low Profile Terminal ELPT |
| Terminal Type 2 | Embedded High Profile Terminal EHPT |
| Paste Technology | Alpha Plus® paste with T2 Technology |
| Separator | Maxguard T2 advanced separator |
| Case Material | Manufactured polypropylene rugged case |
| Watering System | HydroLink™ single-point watering system |
| Recyclability | 99% recyclable |
| Product Type | Deep Cycle Battery |
