Battery Overview

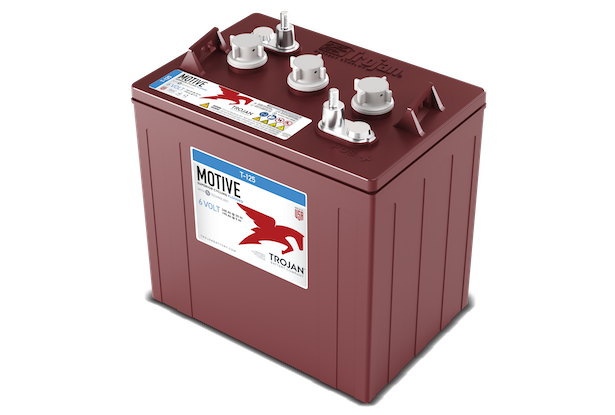

The Trojan T-125 6V flooded lead acid battery is part of the flagship Signature Line, delivering maximum sustained performance and increased total energy for demanding deep-cycle applications. Engineered with Alpha Plus® paste featuring T2 Technology and a Maxguard T2 advanced separator, it provides exceptionally long battery life and significantly lowers operating costs.
Built with a rugged, heat and corrosion-resistant polypropylene case, this battery is 99% recyclable and features the HydroLink™ single-point watering system for easy, safe maintenance. With a low self-discharge rate of just 5-15% per month and four available terminal types, it’s a versatile power solution for aerial work platforms, golf carts, marine, RVs, and renewable energy systems.
Battery Specification
| Model Number | T-125 |
| Voltage | 6V |
| Group Size | GC2 |
| Battery Type | Flooded Lead Acid |
| Product Line | Signature Line |
| Capacity Minutes @25 Amps | 488 |
| Capacity Minutes @75 Amps | 132 |
| 5-Hr Rate | 195 Ah |
| 10-Hr Rate | 221 Ah |
| 20-Hr Rate | 240 Ah |
| 100-Hr Rate | 266 Ah |
| Energy (kWh) | 1.60 |
| Length | 10.30 in (262 mm) |
| Width | 7.11 in (181 mm) |
| Height | 11.07 in (281 mm) |
| Weight | 66 lbs (30 kg) |
| Operating Temperature | -4°F to 113°F (-20°C to 45°C) |
| Terminal Type 1 | Embedded Low Profile Terminal ELPT |
| Terminal Type 2 | Embedded High Profile Terminal EHPT |
| Terminal Type 3 | Embedded Automotive Post Terminal EAPT |
| Terminal Type 4 | Embedded Universal Terminal EUT |
| Technology | Alpha Plus® paste with T2 Technology |
| Separator | Maxguard T2 advanced separator |
| Case Material | Polypropylene rugged case |
| Watering System | HydroLink™ single-point watering system |
| Self-Discharge | 5-15% per month |
| Recyclability | 99% recyclable |
