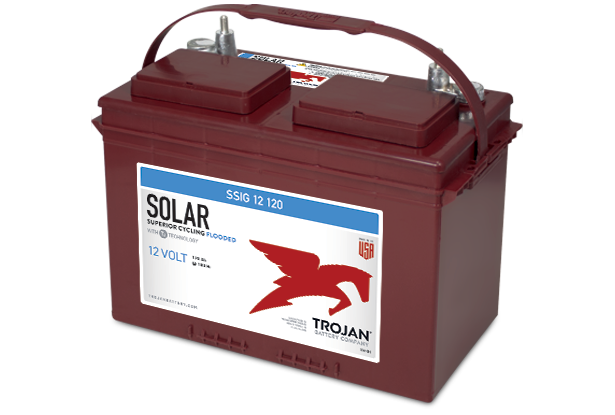

Trojan SSIG 12 120 12V Flooded Lead Acid Battery
The Trojan SSIG 12 120 12V deep cycle flooded lead acid battery with Bayonet Cap delivers the high performance your solar applications require. Optimized for renewable energy, it's designed to deliver maximum... Read moreBattery Overview
The Trojan SSIG 12 120 12V deep cycle flooded lead acid battery with Bayonet Cap delivers the high performance your solar applications require. Optimized for renewable energy, it's designed to deliver maximum sustained performance, long life and increased energy and is ideal for off-grid, grid-tied and unstable grid environments.
Engineered to withstand the rigorous conditions of renewable energy applications, this battery features Alpha Plus® Paste with T2™ technology for maximum sustained performance and increased total energy. Exceptional structural adhesion enhances current flow and reduces downtime and maintenance costs, while the Maxguard® T2 Separator optimizes porosity development in active material to sustain the battery for longer periods. Maximum Flame Arrestors provide maximum safety by preventing sparks from igniting the hydrogen in the battery cell, and the premium casing protects against damage caused by harsh conditions. This battery is 99% recyclable.
Battery Specification
| Voltage | 12V |
| Capacity Minutes | N/A |
| Capacity Amp-Hours | 10-Hr Rate / 99 Ah 20-Hr Rate / 107 Ah 48-Hr Rate / 111 Ah 72-Hr Rate / 116 Ah 100-Hr Rate / 120 Ah |
| Energy (kWh) | 1.44 |
| Dimensions inches (mm) | Length / 12.84 (326) Width / 6.60 (168) Height / 9.74 (247) |
| Weight lbs. (kg) | 55 (25) |
| Operating Temperature | -4°F to 113°F (-20°C to +45°C) |
| Group Size | N/A |
| Terminal Type | Universal Terminal UT |
| Brand | Trojan |
| Manufacturer | Trojan |
| Model Number | SSIG 12 120 |
| Product Type | Flooded Lead Acid Battery |
| Application | Solar & Renewable Energy |
| Chemistry | Flooded Lead Acid |
| Terminal | Bayonet Cap |
| Recyclable | 99% |
