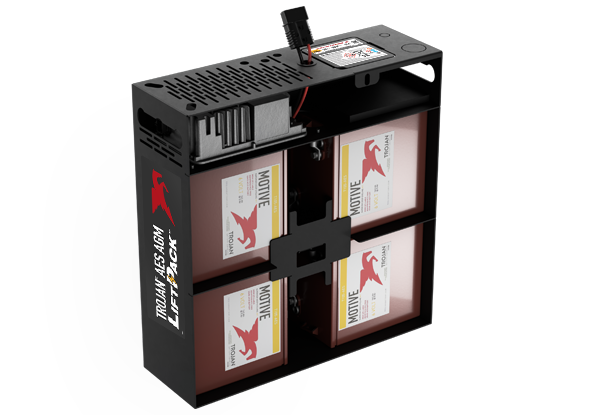

Trojan AES AGM LiftPack SYS00597 24V 171Ah Battery Pack
The Trojan LiftPack SYS00597 is a complete, ready-to-install power solution that bundles four Trojan T105-AES AGM 6V batteries with a premium 25 Amp onboard charger inside a rugged, powder-coated steel case. Designed... Read moreBattery Overview
The Trojan LiftPack SYS00597 is a complete, ready-to-install power solution that bundles four Trojan T105-AES AGM 6V batteries with a premium 25 Amp onboard charger inside a rugged, powder-coated steel case. Designed to make battery swaps fast and hassle-free, it features cutout lifting points and a Universal Anderson SB175 connector for broad compatibility with Class III pallet jacks and lift trucks.
Trojan’s AES AGM technology delivers up to three times the cycle life of traditional AGM, thrives in extreme temperatures from -40°F to 140°F, and supports opportunity charging so you can top up during breaks without damaging the cells. The entire pack is backed by an industry-leading 3-year warranty, giving you years of reliable, maintenance-free power.
Battery Specification
| Brand | Trojan |
| Model Number | SYS00597 |
| Product Type | Battery Pack |
| Chemistry | AGM |
| Voltage | 24V |
| Capacity | 171 Ah (6-Hr Rate) |
| Battery Configuration | 4 x 6V |
| Battery Model | T105-AES |
| Charger | 25 Amp Onboard |
| Connector | Universal Anderson SB175 |
| Length | 26.5 in |
| Width | 7.5 in |
| Height | 26.2 in |
| Weight | 365 lb |
| Case Material | Powder-Coated Steel |
| Terminal Type | M8 Insert |
| Operating Temperature | -40°F to 140°F |
| Application | Class III Pallet Jacks, Lift Trucks, Stackers |
| Warranty | 3 Years |
