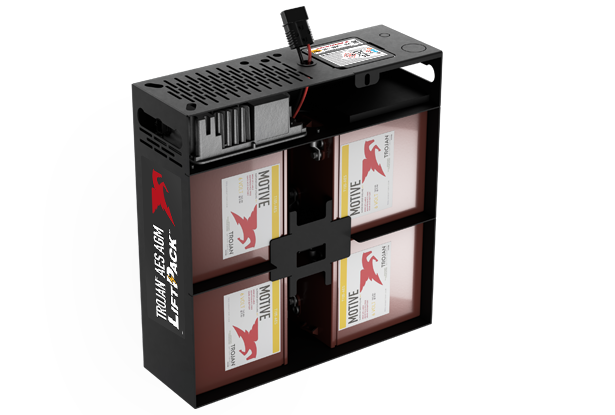

Trojan AES AGM LiftPack SYS00596 24V 171Ah Battery Pack
Power up your Class 3 pallet jack with the Trojan AES AGM LiftPack, a rugged all-in-one pack that bundles four T105-AES 6V batteries and a smart 25 Amp onboard charger. Its AES... Read more
$0.00
|
Battery Overview
Power up your Class 3 pallet jack with the Trojan AES AGM LiftPack, a rugged all-in-one pack that bundles four T105-AES 6V batteries and a smart 25 Amp onboard charger. Its AES AGM cells deliver up to three times the cycle life of standard AGM and happily accept opportunity charging during short breaks, so you keep moving without battery anxiety. From freezer aisles to sweltering docks, this maintenance-free pack shrugs off extreme temperatures and partial state of charge without breaking a sweat. Swap packs in seconds using the cutout lifting points and plug into any forklift with the universal SB175 connector—all backed by Trojan’s 3-year warranty.
Battery Specification
| Model Number | SYS00596 |
| Voltage | 24V |
| Capacity Minutes | N/A |
| Capacity Amp-Hours | 6-Hr Rate / 171 Ah |
| Energy (kWh) | N/A |
| Dimensions inches (mm) | Length / 27.3 (693) Width / 7.5 (191) Height / 26.2 (664) |
| Weight lbs. (kg) | 365 (166) |
| Operating Temperature | -40°F to 140°F (-40°C to 60°C). At temperatures below 32°F (0°C) maintain a state of charge greater than 60% |
| Terminal Type | M8 Insert |
| Product Type | AES AGM |
| Industry | Material Handling |
| Brand | Trojan |
| Manufacturer | Trojan |
| Chemistry | AGM |
| Battery Configuration | 4 x 6V |
| Onboard Charger | 25 Amp |
| Connector Type | Universal SB175 Anderson |
| Warranty | 3 Years |
| Cycle Life | Up to 1,200 cycles at 100% DoD |
| Maintenance | Maintenance-Free |
| Application | Class 3 Pallet Jacks, Lift Trucks, Stackers |
