Battery Overview
The Trojan 24TMX 12V flooded lead acid battery delivers outstanding sustained performance for demanding deep-cycle applications. Engineered with Alpha Plus paste featuring T2 Technology and the Maxguard T2 advanced separator, it offers longer life, increased total energy, and significantly lower operating costs.
Ideal for marine, floor cleaning machines, recreational vehicles, and solar setups, this rugged battery features a heat- and corrosion-resistant polypropylene case and four terminal type options. With 85 Ah at the 20-hour rate and only 5-15% self-discharge per month, it keeps downtime to a minimum.
Battery Specification
| Brand | Trojan |
| Model Number | 24TMX |
| Voltage | 12V |
| Group Size | 24 |
| Product Type | Flooded Lead Acid |
| Chemistry | Flooded Lead Acid |
| Capacity (20-Hr Rate) | 85 Ah |
| Capacity (10-Hr Rate) | 78 Ah |
| Capacity (5-Hr Rate) | 70 Ah |
| Capacity (100-Hr Rate) | 94 Ah |
| Capacity Minutes (@25 Amps) | 140 |
| Capacity Minutes (@75 Amps) | 36 |
| Energy | 1.13 kWh |
| Length | 10.92 in |
| Width | 6.62 in |
| Height | 9.25 in |
| Weight | 47 lb |
| Operating Temperature | -4°F to 122°F |
| Terminal Types | Universal Terminal (UT), Automotive Post (AP), Wingnut (WNT), Small L-Terminal (SLT) |
| Case Material | Polypropylene |
| Self-Discharge | 5-15% per month |
| Recyclability | 99% recyclable |
| Applications | Floor Cleaning Machines, Marine & Boating, Recreational Vehicles, Solar & Renewable Energy |
Enjoy fast, reliable shipping across all orders. Returns accepted within 30 days of purchase.

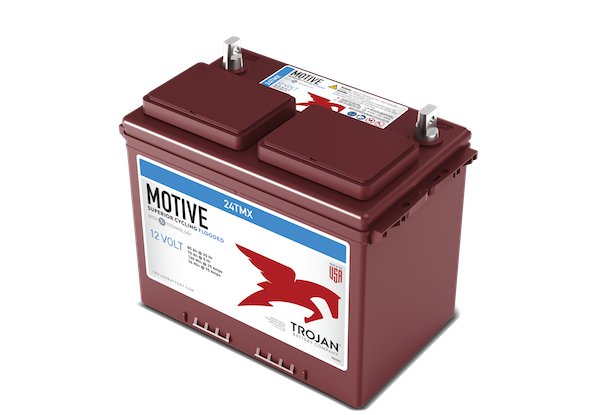

Trojan 24TMX 12V Flooded Lead Acid Battery
$0.00
