Battery Fundamentals
Battery Fundamentals
Technical reference covering the electrochemical and electrical principles that govern battery voltage, current,
capacity, energy, power, internal resistance, efficiency, state of charge, state of health, and battery-system configuration.
What Is a Battery?
A battery is an electrochemical source that converts chemical potential into electrical work through oxidation and reduction reactions.
An individual cell is the basic electrochemical unit; a battery may consist of one cell or multiple cells
connected and packaged to provide the required voltage, capacity, power, and mechanical form.
A battery does not literally store a reservoir of electricity. It stores chemical energy in reactants and electrode structures.
During discharge, electrochemical reactions drive electron flow through the external circuit while ions move inside the cell.
Primary systems are intended for discharge and replacement; secondary systems are designed so the electrochemical state can be restored by charging.
The useful electrical output of a battery is conditional on chemistry, temperature, state of charge, current demand, cutoff voltage,
age, and the design of the cell and battery system. Nameplate values therefore describe performance under defined conditions rather than
an unconditional amount of energy or runtime.
Electrochemical Cell Structure
Cell construction varies widely by chemistry and format, but the functional architecture normally includes two electrodes,
an ion-conducting electrolyte, an electronically insulating separator where required, current collectors where applicable,
external terminals, and an enclosure. The separator prevents direct electronic contact between electrodes while permitting
ionic transport through the electrolyte.
Electrode naming requires care. During discharge of a galvanic cell, oxidation occurs at the anode and reduction at the cathode.
In a rechargeable cell, the reaction direction reverses during charge, so “anode” and “cathode” can become ambiguous in general
commercial discussion. For a chemistry-neutral reference, negative electrode and positive electrode
are often clearer unless the operating state is explicitly stated.
Figure 1 — Electrochemical Cell Structure
− terminal
+ terminal
Negative electrode
Active material + current collector where applicable
Electrolyte
Separator
Electrolyte
Positive electrode
Active material + current collector where applicable
Generic functional architecture. Exact materials, current-collector construction, electrolyte phase,
separator design, pressure-control features, and enclosure details depend on chemistry and cell format.
How Electrochemical Cells Produce Voltage
During discharge, oxidation at one electrode releases electrons to the external circuit while reduction at the other electrode
consumes electrons. To maintain charge balance, ions move through the electrolyte between the electrode regions.
The combination of these coupled reactions creates an electrochemical potential difference that can perform electrical work
on an external load.
The equilibrium or open-circuit voltage depends on the electrochemical potentials of the participating reactions and therefore
differs among chemistries. Nominal voltage is an engineering label for a chemistry or battery system; actual voltage changes with
state of charge, temperature, current, cell design, and recent operating history.
Technical Note
For a reversible electrochemical reaction, the Gibbs free-energy change is related to cell potential by
ΔG = −nFE,
where ΔG is the reaction Gibbs free-energy change,
n is the number of moles of electrons transferred per mole of reaction,
F is the Faraday constant,
and E is the reversible cell potential under the defined conditions.
Figure 2 — Electron and Ion Flow During Discharge
External load
e⁻ →
→ e⁻
Negative electrode
oxidation during discharge
ionic transport →← counter-transport / chemistry-specific species
Separator
Positive electrode
reduction during discharge
Electrons flow through the external circuit; ionic current through the electrolyte closes the electrochemical circuit.
Ion species and transport direction are chemistry-specific.
Open-Circuit Voltage vs. Terminal Voltage
Open-circuit voltage (OCV) is the voltage measured when no intentional external current is flowing
and the cell has been allowed to approach a defined rest condition.
Terminal voltage is the voltage measured at the external terminals during actual operation.
Under discharge load it is normally lower than the corresponding rested OCV; during charge it can be higher.
A simple engineering representation is:
Vterminal ≈ VOCV − I × Rinternal
This expression captures the immediate ohmic contribution but does not fully describe a real battery.
Charge-transfer kinetics, concentration gradients, diffusion, thermal effects, hysteresis, and other polarization
processes create time-dependent voltage behavior. When a load is removed, part of the voltage recovers immediately
and part relaxes more slowly toward a rested condition.

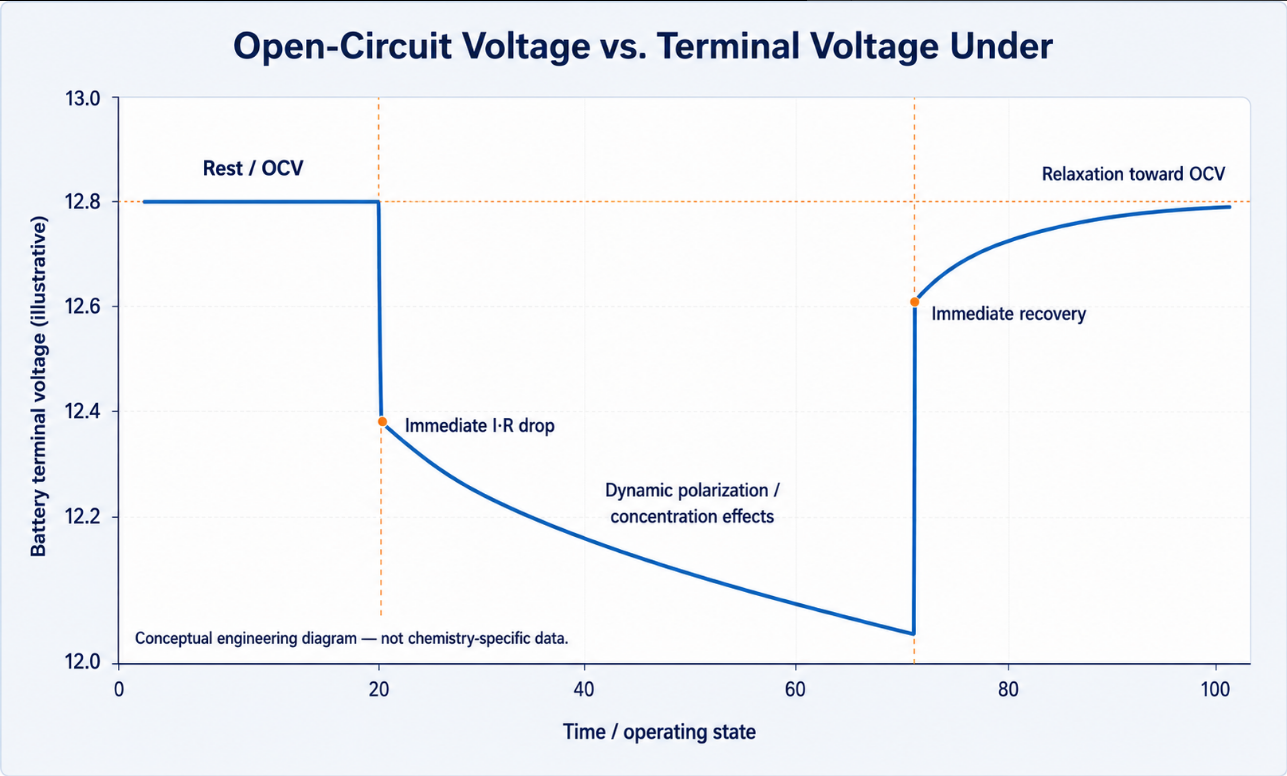

Figure 3 — Open-Circuit Voltage vs Terminal Voltage
Illustrative 12 V example — not measured chemistry-specific data.
Conceptual engineering diagram illustrating immediate voltage drop, dynamic polarization under load,
and recovery after load removal. The 12 V values are illustrative only and are not measured chemistry-specific data.
Internal Resistance, Impedance and Polarization
Internal resistance is commonly used as an engineering shorthand for mechanisms inside the battery that oppose current flow
and create terminal-voltage loss. The observed response includes purely ohmic resistance in conductors, electrolyte and interfaces,
plus electrochemical contributions associated with charge transfer and mass transport. These effects are often grouped under
the broader concept of polarization.
Resistance and impedance are not fixed battery constants. They vary with chemistry, state of charge, temperature, age,
current level, recent history, and test method. A DC pulse-resistance measurement and an AC impedance measurement probe
different time scales and electrochemical processes, so the numerical results should not be treated as interchangeable.
For a simplified ohmic component, instantaneous heat generation can be represented as:
Ploss ≈ I²R
The relationship is useful for understanding why high current causes disproportionately higher resistive heating,
but total electrochemical and thermal losses in a working battery are more complex than a single fixed resistor.
Engineering Significance
Higher internal voltage loss reduces usable power, can trigger low-voltage cutoff earlier, and increases heat generation.
Resistance growth is therefore important in power capability, cold-temperature operation, aging assessment, and fault diagnosis.
Voltage, Current, Resistance, Power and Energy
Resistive voltage drop: ΔV ≈ I × R
Resistive voltage drop — Ohm’s law applied to a resistive element
P = VI
Instantaneous electrical power (W)
E = Pt
Energy for constant power over time
Ohm’s law applies directly to resistive elements and is useful for representing the resistive component of battery voltage drop.
It is not a complete model of battery terminal voltage, which also includes electrochemical polarization and time-dependent effects.
In a DC battery system, current is the rate of charge flow demanded or supplied by the circuit,
voltage is the electrical potential difference at the terminals, and power is the instantaneous rate of energy transfer.
Energy accumulates power over time.
Current demand also changes the battery's terminal voltage and internal heat generation,
which is why a battery that has adequate nominal energy may still be unsuitable for a high-power load.
Capacity: Amp-Hours
Amp-hour capacity expresses electrical charge delivered over a specified discharge test:
Q = ∫ I dt
For constant current:
Q = I × t
Amp-hours measure charge, not energy. Rated capacity is conditional on the manufacturer's stated discharge rate
or duration, end/cutoff voltage, temperature, initial state, chemistry, battery condition, and test procedure.
A value such as “100 Ah” therefore cannot be interpreted correctly without its rating conditions.
Lead-acid batteries show a pronounced rate-capacity effect often described with Peukert-type behavior:
as discharge current rises, delivered amp-hour capacity to a specified cutoff generally falls.
Peukert relationships are useful for defined lead-acid applications but should not be applied universally
to all battery chemistries.
Energy: Watt-Hours
Electrical energy delivered by a battery is obtained by integrating voltage and current over time:
E = ∫ V I dt
A simple nominal-energy estimate is:
Wh ≈ nominal voltage × Ah
Example: 12 V × 100 Ah ≈ 1,200 Wh nominal energy.
This is useful for first-pass comparison but is not the same as measured delivered or usable energy.
Actual energy depends on the discharge voltage profile, cutoff voltage, rate, temperature,
efficiency, allowed SOC window, battery age, and control-system limits.
C-Rate and Discharge Rate
C-rate expresses charge or discharge current relative to a stated capacity reference.
For a 100 Ah battery, an idealized 1C current is 100 A, 0.5C is 50 A, and 0.1C is 10 A.
The notation is convenient for comparing current severity across battery sizes.
100 Ah reference1C100 A
100 Ah reference0.5C50 A
100 Ah reference0.1C10 A
C-rate does not guarantee a specific runtime or delivered capacity.
Manufacturer rating conventions, allowable cutoff voltage, chemistry, temperature,
and cell design all influence actual performance.
Capacity vs. Discharge Rate
Battery capacity is specified under defined discharge conditions. In lead-acid batteries, the available amp-hour capacity generally decreases as discharge current increases. This behavior is commonly described by the rate-capacity effect and, for many lead-acid applications, by Peukert-type behavior.
The Trojan T-105 provides a real manufacturer example:
5-hour rate185 Ah
10-hour rate207 Ah
20-hour rate225 Ah
100-hour rate250 Ah
These are ratings for the same 6 V flooded lead-acid battery under different discharge durations.

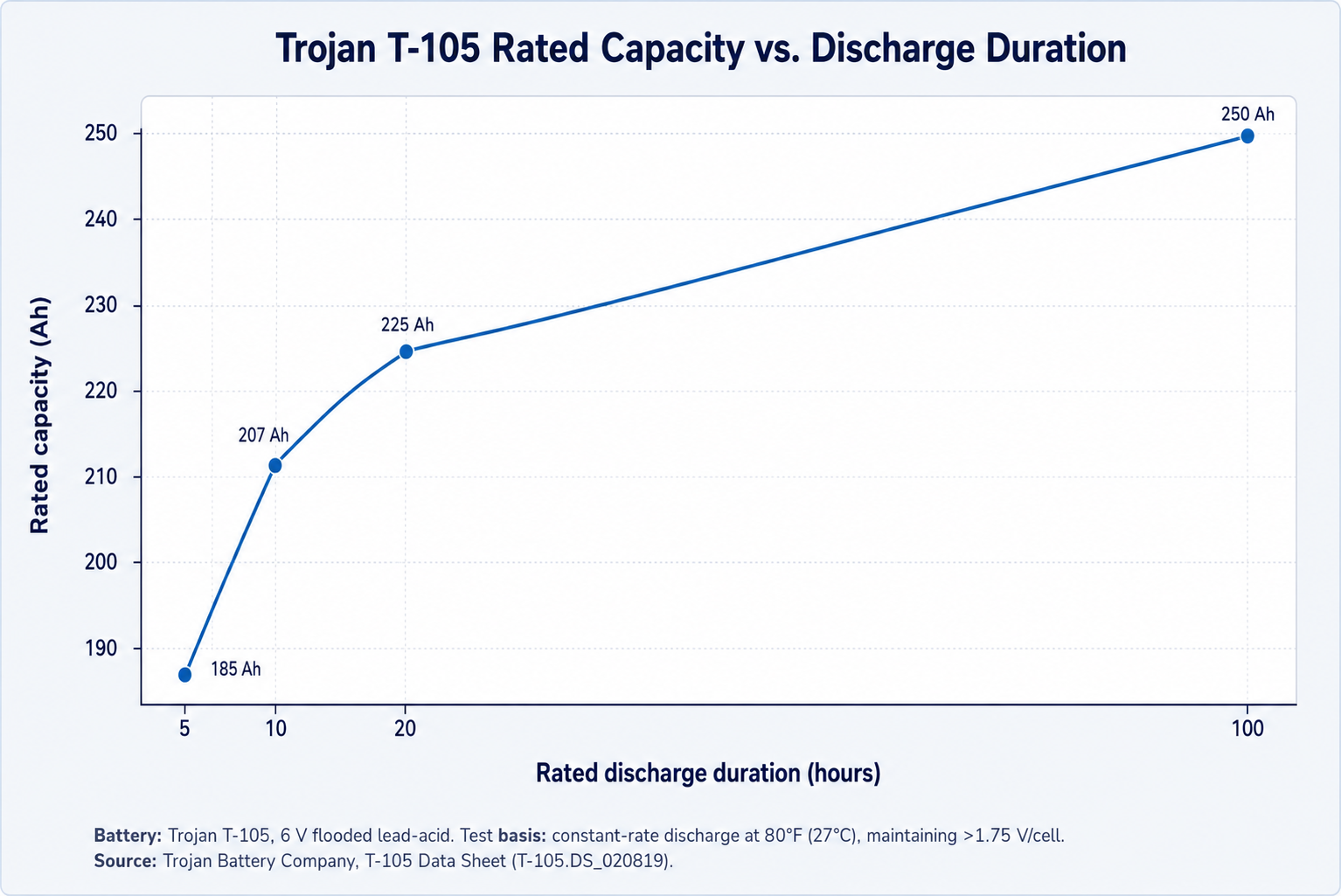

Figure 4 — Rated Capacity vs. Discharge Duration
Trojan T-105 rated capacity versus discharge duration. The same flooded lead-acid battery is rated at 185 Ah at the 5-hour rate, 207 Ah at the 10-hour rate, 225 Ah at the 20-hour rate, and 250 Ah at the 100-hour rate.
Source: Trojan Battery Company — T-105 6V Flooded Lead Acid Battery / official manufacturer datasheet.
Application note: This is a flooded lead-acid example and should not be generalized quantitatively to lithium, LiFePO₄, or other battery chemistries.
Engineering Significance
A battery marked “225 Ah” should not automatically be assumed to deliver 225 Ah at every discharge current. Runtime calculations should use manufacturer data for the actual discharge rate, end voltage, temperature, and operating conditions.
Temperature Effects
Temperature changes reaction kinetics, ionic conductivity, charge-transfer behavior, diffusion,
and therefore internal impedance, available power, capacity, charge acceptance, aging rate,
and safety margins.
Low temperature:
typically increases impedance and reduces available power and capacity.
Charging can also become more restrictive because some chemistries have temperature-dependent charge limits.
High temperature:
can temporarily improve reaction kinetics and reduce some resistive losses,
but generally accelerates degradation processes and may increase safety risk.
The magnitude of these effects is chemistry- and design-specific;
there is no single universal temperature correction percentage for all batteries.
Figure 5 — Temperature Correction Factors
Published Lead-Acid Temperature-Capacity Correction Example
EnerSys PowerSafe OPzV stationary lead-acid cells.
Reference temperature: 20°C.
Manufacturer correction factors are specified separately for 1–4 h and 5–12 h discharges.
Table 2 — Temperature Correction Factors
Temperature
5–12 h correction factor
1–4 h correction factor
−10°C
0.60
0.55
0°C
0.78
0.74
10°C
0.90
0.88
20°C
1.00
1.00
30°C
1.05
1.06
40°C
1.07
1.08
Source: EnerSys, PowerSafe OPzV Battery Installation, Operation and Maintenance Instructions,
temperature correction factors. [5]
These published factors are specific to this lead-acid product family and the stated discharge-duration ranges.
Lines connect the published temperature points for visual interpretation; no additional measured intermediate values are implied.
State of Charge (SOC)
State of charge is an estimate of the remaining charge relative to a defined usable or reference capacity:
SOC normally cannot be measured directly.
Practical systems estimate it using combinations of coulomb counting,
rested OCV correlation, measured voltage/current/temperature,
electrochemical or equivalent-circuit models, and BMS estimation algorithms.
Each method has limitations.
Coulomb counting accumulates sensor and integration error;
OCV methods require chemistry-specific relationships and sufficient rest;
voltage under load is influenced by resistance and polarization;
model-based estimators depend on parameter accuracy and calibration.
State of Health (SOH)
State of health is not one universal directly measured variable.
It is a condition indicator defined relative to a chosen performance criterion.
A system may estimate SOH from remaining capacity, resistance or impedance growth,
power capability, self-discharge, or an application-specific combination of metrics.
Because the definition and algorithm differ among manufacturers and applications,
two systems can report different SOH values for the same physical battery.
SOH should therefore be interpreted together with the method, reference state,
operating history, and service requirement.
Depth of Discharge and Usable Capacity
Depth of discharge expresses the portion of a reference capacity removed from the battery:
DoD = discharged capacity ÷ reference capacity × 100%
When SOC and DoD use the same reference capacity, DoD is approximately 100% − SOC.
Reported values may differ in practical BMS implementations because usable buffers, reference capacities,
calibration, and estimation methods can differ.
Manufacturers may restrict the permitted SOC/DoD window for life, safety, power,
or warranty reasons. A 100 Ah nameplate rating therefore does not automatically mean
an application should routinely extract the full 100 Ah.
Coulombic, Energy and Round-Trip Efficiency
Coulombic efficiency compares charge removed during discharge with charge supplied during charge
over a defined cycle.
ηQ = Qdischarge ÷ Qcharge × 100%
Energy efficiency compares electrical energy out with electrical energy in.
Because charge and discharge occur at different terminal voltages and include internal losses,
high coulombic efficiency does not imply identical energy efficiency.
ηE = Edischarge ÷ Echarge × 100%
Round-trip efficiency is a system-level energy ratio measured over a complete charge/discharge
process with clearly defined boundaries. It may include battery-only losses or broader conversion and auxiliary
losses depending on the stated test boundary. DOE FEMP evaluates deployed BESS efficiency from measured charge and
discharge energy over a defined analysis period, reinforcing the importance of the measurement boundary and period. [3]
Cells, Modules, Packs and Battery Banks
Battery-system terminology varies among industries and manufacturers,
so the following hierarchy should be treated as a general engineering model
rather than an absolute naming standard.
Figure 6 — Battery System Hierarchy
Cell
Basic electrochemical unit
→
Module
Grouped cells
→
Pack / Battery
Electrical + mechanical assembly
→
String / Bank
Series/parallel assemblies
→
System
Battery + BMS/protection/thermal/monitoring
Depending on chemistry and application, higher-level assemblies can include BMS electronics,
contactors, fuses, interconnects, thermal-management hardware, enclosure systems, sensors,
communication interfaces, and supervisory monitoring.
Series and Parallel Configurations
In an idealized battery bank, series connection adds voltage while amp-hour capacity remains the same;
parallel connection adds amp-hour capacity while nominal voltage remains the same.
Total nominal energy increases with the number of equivalent batteries in either architecture.
Table 3 — Series and Parallel Configuration Example
Configuration
Nominal voltage
Ah capacity
Nominal energy
1 × 12 V 100 Ah
12 V
100 Ah
1.2 kWh
2 in series
24 V
100 Ah
2.4 kWh
2 in parallel
12 V
200 Ah
2.4 kWh
2S2P
24 V
200 Ah
4.8 kWh
Figure 7 — Series and Parallel Configurations
Series
12 V
100 Ah
+
12 V
100 Ah
24 V · 100 Ah
Parallel
12 V
100 Ah
12 V
100 Ah
12 V · 200 Ah
Real banks require attention to current sharing, cell/battery mismatch,
state-of-charge balance, cable and interconnect resistance, fuse/protection coordination,
charger compatibility, and manufacturer limits on parallel strings.
Batteries combined in a bank should be compatible in chemistry, voltage,
design, capacity, age, condition, and approved application.
Primary vs. Secondary Batteries
Table 4 — Primary and Secondary Battery Comparison
Characteristic
Primary
Secondary
Rechargeable
No; designed for one discharge service life
Yes; designed for repeated charge/discharge
Typical service model
Install, discharge, replace
Charge, operate, recharge, maintain/monitor as required
Shelf/storage consideration
Often optimized for long storage and low self-discharge
Storage limits depend strongly on chemistry and SOC
Typical applications
Sensors, meters, controls, low-drain devices
UPS, motive power, energy storage, telecom, industrial systems
Examples
Alkaline, lithium primary
Lead-acid, NiCd, NiMH, lithium-ion, LiFePO₄
Battery Rating Conditions and Datasheet Interpretation
Battery ratings must be read together with their test conditions.
A specification value without the associated discharge rate or duration,
end voltage, temperature, charge state, and measurement method can be misleading.
For stationary batteries, constant-current and constant-power data may both be important.
For high-power batteries, continuous and pulse limits must be interpreted with time,
temperature, SOC, and protection limits. DOE/INL battery test methodology likewise ties performance
characterization to defined test profiles, procedures, and operating conditions. [2]
Table 5 — Example Battery Datasheet Interpretation
Datasheet item
Example notation
What must be checked
Nominal voltage
12 V
Chemistry, cell count, operating voltage range
Rated capacity
100 Ah at C20
Discharge duration/current, end voltage, temperature
A battery specification value is meaningful only together with its rating conditions.
Capacity, power, cycle-life and current ratings should therefore always be evaluated
against the manufacturer's defined test procedure and operating limits.
Essential Battery Terminology
Table 6 — Essential Battery Terminology
Term
Technical meaning
Cell
Basic electrochemical unit containing the active electrode system and electrolyte.
Battery
One or more cells electrically connected and packaged for use as an electrical source.
Nominal voltage
Conventional voltage value used to identify a cell or battery system; not a fixed operating voltage.
OCV
Open-circuit voltage measured with no intentional external current after a defined rest condition.
Terminal voltage
Voltage measured at the external battery terminals under the current operating condition.
Capacity
Quantity of electric charge deliverable under specified conditions, commonly expressed in Ah.
Energy
Electrical work delivered or absorbed over time, commonly expressed in Wh or kWh.
Power
Instantaneous rate of energy transfer, expressed in W or kW.
C-rate
Current normalized to a stated capacity reference.
SOC
Estimated state of charge relative to a defined reference capacity or usable charge window.
SOH
Method-dependent indicator of battery condition relative to a defined new/reference state.
DoD
Depth of discharge: fraction of reference capacity removed during discharge.
Internal resistance
Engineering representation of internal voltage-loss mechanisms under a defined DC test method.
Impedance
Frequency-dependent opposition to AC excitation, containing resistive and reactive electrochemical components.
Cycle
A defined sequence of discharge and charge operations.
Cycle life
Number of cycles delivered before reaching a defined end-of-life criterion under specified test conditions.
Calendar life
Service or storage life governed by time-dependent aging under stated conditions.
Float service
Standby operation in which a secondary battery is maintained at a controlled charge voltage while connected to the DC system.
Cycle service
Application involving repeated energy removal and recharge rather than continuous standby float operation.
Cutoff voltage
Specified terminal voltage at which discharge is terminated under defined conditions.
Charge voltage
Applied or controlled voltage used during a defined charging stage or method.
Self-discharge
Loss of stored charge during open-circuit storage due to internal processes.
BMS
Battery management system that monitors, estimates, communicates, and/or protects battery operating parameters.
Terminology is aligned with standard battery engineering usage
and IEC 60050-482 / Electropedia concepts where applicable. [1]
Technical Summary
Battery voltage originates from electrochemical potential and changes with chemistry and operating condition.
Terminal voltage differs from rested open-circuit voltage whenever current and polarization effects are present.
Rated capacity is conditional on discharge rate or duration, cutoff voltage, temperature, initial state, and test method.
Internal resistance and polarization affect voltage drop, heat generation, available power, and usable energy.
SOC and SOH are estimated, method-dependent quantities rather than simple direct voltage readings.
Temperature affects impedance, capacity, power capability, charge acceptance, degradation rate, and safety.
Series and parallel architecture changes system voltage, capacity, current distribution, and protection requirements.
Nominal energy is not the same as delivered or usable energy.
Datasheet values should always be interpreted together with their test conditions and operating limits.
Technical Interpretation Notes
Does a battery store electricity?
Not literally. It stores chemical energy and converts that energy into electrical work during discharge.
Does the Ah rating determine runtime by itself?
No. Runtime also depends on discharge current or power, cutoff voltage, temperature,
voltage profile, efficiency, battery condition, and system limits.
Does equal voltage mean batteries are interchangeable?
No. Chemistry, capacity, power capability, charge method, dimensions, terminals,
temperature limits, protection requirements, and approvals may differ.
Can OCV alone determine SOC?
Only approximately and only when a chemistry-specific OCV/SOC relationship and suitable rest conditions are available.
Under load or shortly after charge/discharge, voltage polarization can make OCV-based inference unreliable.
Is nominal Wh equal to usable Wh?
No. Nominal Wh is an approximation. Usable energy depends on voltage profile, current,
cutoff voltage, SOC window, temperature, efficiency, aging, and control limits.
Are two batteries with the same voltage and Ah necessarily equivalent?
No. Identical nameplate voltage and capacity do not establish equivalent power capability,
life, chemistry, safety behavior, charger compatibility, or application suitability.
Technical References
IEC 60050-482, International Electrotechnical Vocabulary —
Primary and secondary cells and batteries; Electropedia terminology.
IEC reference
Jon P. Christophersen, Idaho National Laboratory,
Battery Test Manual for Electric Vehicles, Revision 3,
INL/EXT-15-34184, June 2015.
Technical report
Andy Walker and Jal Desai,
Battery Energy Storage System Evaluation Method,
U.S. Department of Energy Federal Energy Management Program,
DOE/GO-102023-6083, December 2023.
DOE report
EnerSys,
ODYSSEY Battery Technical Manual, Publication No. EN-ODY-TM-004,
November 2018; extended discharge characteristics and PC1500 performance data at 25°C.
Manufacturer technical manual
EnerSys,
PowerSafe OPzV Battery Installation, Operation and Maintenance Instructions,
document code AMER-EN-M-PS-OPZV-0126, 2026; temperature correction factors and operating guidance.
Manufacturer instructions
