Battery Application Engineering Framework

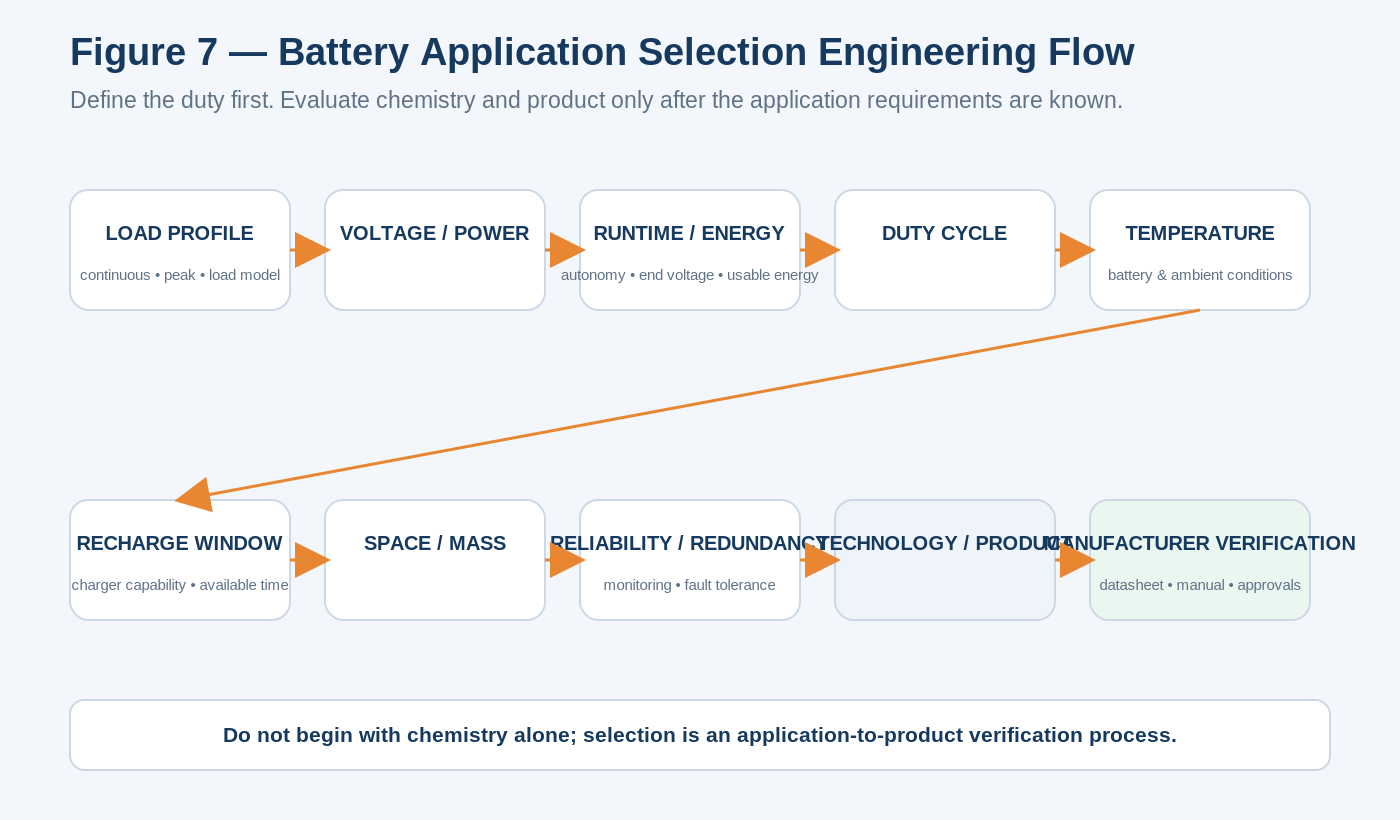

Battery selection should begin with the application duty profile rather than with a chemistry name, nominal voltage, or amp-hour rating. The application defines the electrical and environmental conditions the battery must satisfy, the recharge opportunity available after discharge, and the reliability consequences of insufficient performance.

The same battery chemistry can behave very differently in a 5-minute UPS discharge, an 8-hour telecom reserve system, and a daily-cycled motive application. Application duty therefore determines which battery specifications are technically relevant.

LoadContinuous load, peak or surge load, constant-current vs. constant-power behavior

Electrical architectureSystem or DC-bus voltage, series/parallel arrangement, charger, rectifier, inverter, controller

AutonomyRequired runtime, discharge duration, end voltage, usable SOC window, depth of discharge

Duty cycleStandby, high-rate, repeated cycling, starting, traction, mission-critical reserve

RechargeAvailable recharge time, charge-source capability, charge algorithm, temperature limits

EnvironmentAmbient and battery temperature, vibration, moisture, corrosion, ventilation, access

ReliabilityRedundancy, string architecture, monitoring, fault detection, maintenance strategy

IntegrationSpace, mass, terminals, connectors, communications, protection, equipment approvals

Safety & complianceApplication-specific codes, standards, listing requirements, transport and local rules

Engineering Significance

A battery that matches voltage and Ah can still be unsuitable if it cannot satisfy the required power profile, end voltage, recharge window, temperature range, mechanical constraints, monitoring architecture, or application-specific approval requirements.

Application Duty Classification

Application names are useful only when they are translated into engineering duty. Several markets can share the same duty class, and one market can contain more than one duty class.

Standby / Reserve

UPS, telecom, fire alarm, security, emergency lighting, hospital backup.

Long standby periods
Infrequent discharge
Readiness and reliability
Controlled recharge or float strategy where applicable

High-Rate / Short Duration

UPS, engine starting, emergency power-transfer support.

High power
Short discharge duration
End-voltage performance
Internal resistance and power capability

Repeated Cyclic Energy

Solar, golf cart, RV, marine house loads, renewable storage.

Repeated discharge and recharge
Usable energy and SOC window
Cycle durability
Recharge energy and available time

Motive / Traction

Forklifts, industrial vehicles, golf carts, floor equipment.

Repeated duty cycles
Peak current and sustained energy
Opportunity or overnight charging
Mechanical and thermal operating environment

Mission-Critical

Hospitals, telecom infrastructure, data infrastructure, emergency-response systems.

Reliability and redundancy
Monitoring and fault detection
Maintenance planning
Verified autonomy

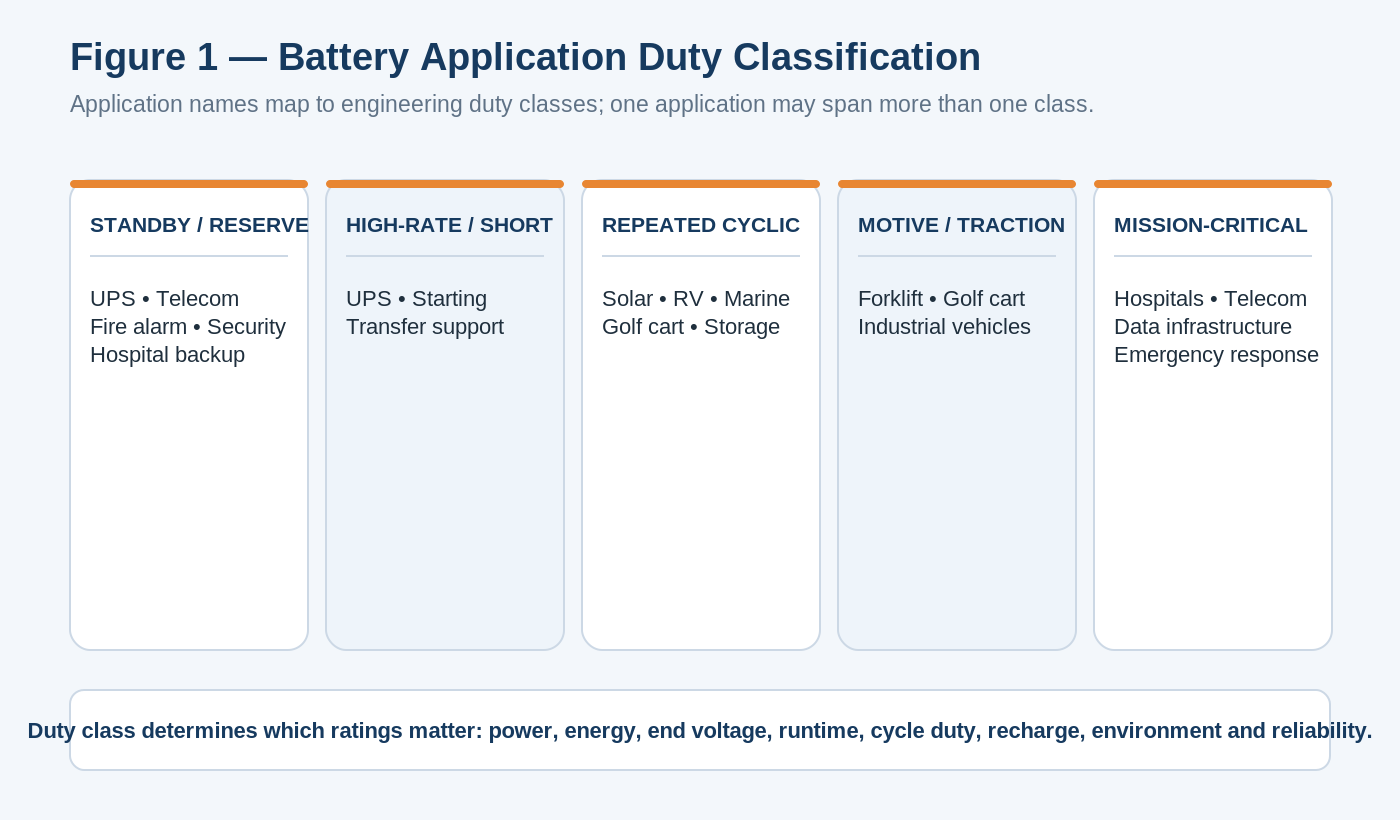

Five aligned technical cards classify battery applications as standby reserve, high-rate short duration, repeated cyclic energy, motive traction, and mission-critical. — **Figure 1 — Battery Application Duty Classification** Battery applications can be grouped by engineering duty rather than market name alone. One application may span multiple duty classes.

Load Profile, Power & Runtime

Battery sizing begins with the load seen by the battery or DC bus. A load may be approximately constant-current, approximately constant-power, highly intermittent, or composed of a continuous base load with short peaks. The distinction matters because battery current and terminal voltage interact throughout discharge.

P = V × IInstantaneous DC power

E = ∫ P(t) dtEnergy required over the duty profile

I ≈ P ÷ V_terminalConstant-power load approximation

For a constant-power load, current tends to increase as battery terminal voltage falls. This is one reason short-duration UPS sizing cannot be reduced to a simple Ah calculation. Conversely, long-duration energy applications require attention to total delivered energy, allowable depth of discharge, inverter or converter efficiency, temperature, and the usable SOC window.

Amp-hours alone do not define runtime. End voltage, discharge rate, temperature, battery condition, system losses, and the load model all affect usable performance. Manufacturer constant-current or constant-power discharge tables are therefore often the correct engineering source for application sizing. IEEE 1184-2022 specifically addresses battery selection, installation, maintenance, testing, and the relationship between UPS battery systems and UPS charging/converter components. [1]

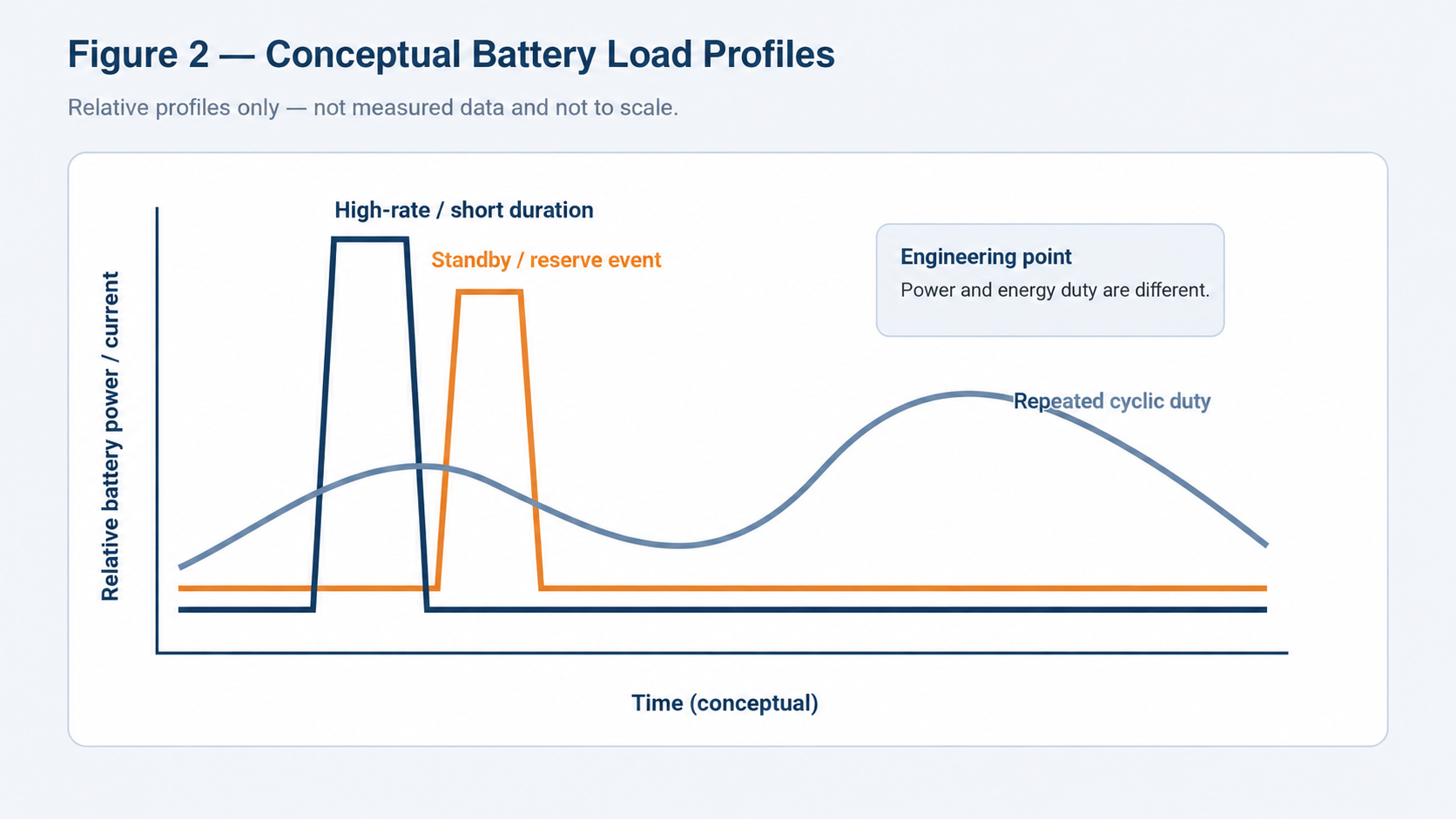

Figure 2 — Conceptual Battery Load Profiles Conceptual comparison of standby-event, high-rate short-duration, and repeated cyclic load profiles. Not measured data and not to scale.

Critical Standby Application

UPS Systems

UPS batteries operate as part of a power-conversion system, not as isolated energy-storage devices. Battery duty can range from short ride-through during a transfer or controlled shutdown to extended runtime, but high-rate short-duration discharge is especially important in many UPS designs. IEEE 1184-2022 treats battery selection together with the UPS charging and converter relationship. [1]

Duty Profile: Standby service with immediate discharge on input-power loss; often high-rate and short duration, with ride-through or extended-runtime objectives defined by the UPS design.
Electrical Architecture: Battery strings feed a UPS DC bus associated with rectifier/charger and inverter stages. Systems may use one or more series strings and parallel strings where the UPS and battery design permit.
Critical Battery Requirements: Constant-power discharge capability, runtime target, minimum/end voltage, temperature, aging allowance, battery quantity, string matching, recharge capability, redundancy, and monitoring.
Technologies Commonly Considered: High-rate VRLA/AGM, vented lead-acid, nickel-cadmium, and lithium-ion systems depending on UPS design, scale, operating environment, and manufacturer approval.
Environmental / Operational Factors: Battery temperature, cabinet ventilation, string current sharing, maintenance access, monitoring, and the consequences of a weak unit within a series string.
Common Selection Risks: Sizing from Ah alone, ignoring end voltage or constant-power data, mixing unmatched units, assuming a replacement chemistry is charger-compatible, or overlooking recharge and redundancy requirements.
Engineering Verification: Use UPS and battery manufacturer discharge data for the required power, duration, end voltage, temperature, battery age criterion, and permitted string configuration.

Engineering Significance

UPS batteries should not be sized from Ah alone. Short-duration UPS applications often depend on manufacturer constant-power discharge data at a specified end voltage and temperature.

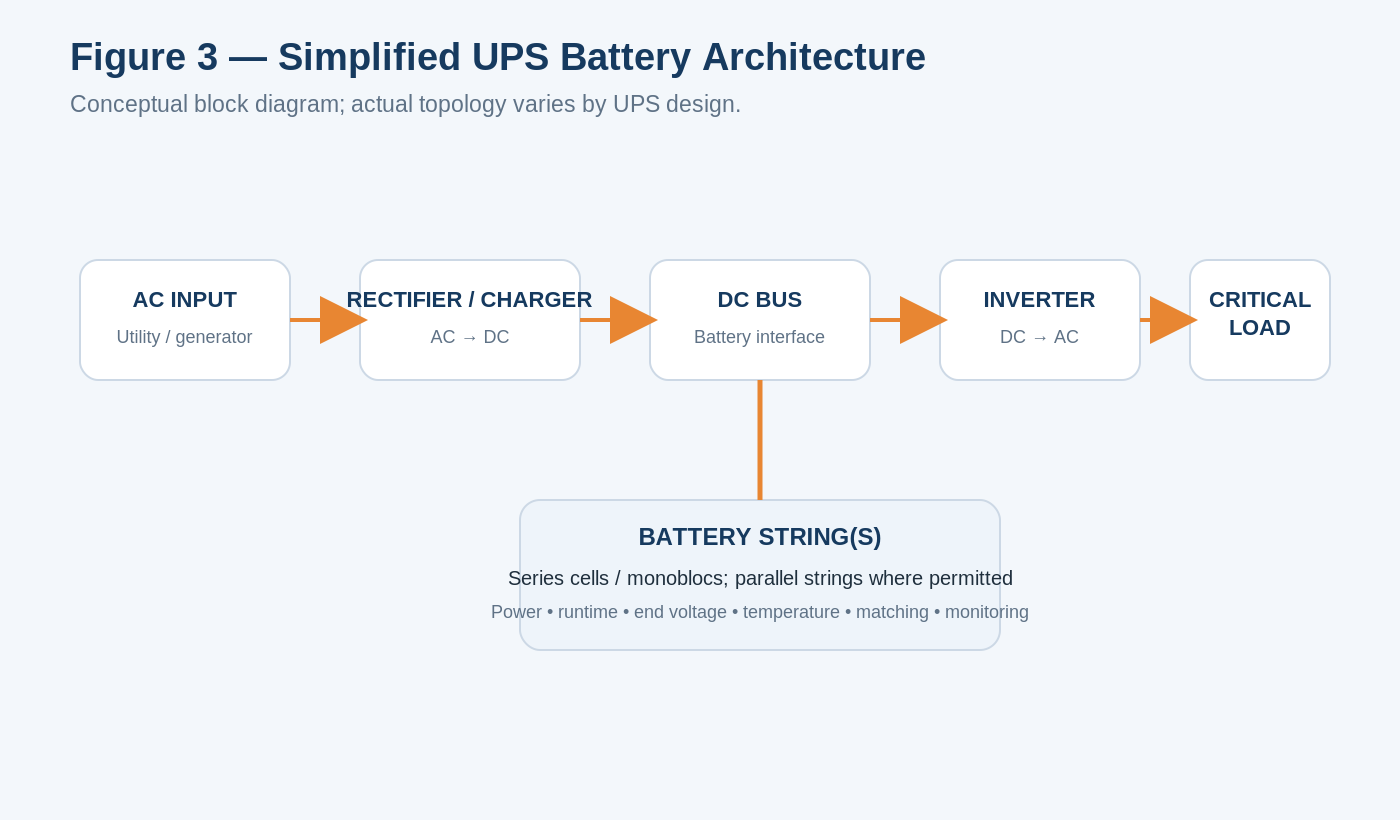

Block diagram of a UPS showing AC input to rectifier, DC bus with battery strings, inverter, and critical load. — **Figure 3 — Simplified UPS Battery Architecture** Conceptual UPS power path showing AC input, rectifier/charger, DC bus, battery string, inverter, and critical load.

Worked Engineering Example 1 — UPS Constant-Power Selection

Objective: Show why short-duration UPS selection should use manufacturer constant-power data rather than a 20-hour Ah rating.

Published source: EnerSys DataSafe HX & HX Plus Performance Data. The cited table provides constant power in watts per cell at 25°C / 77°F to a specified end voltage.

Battery used for the example: DataSafe 12HX400.

Published value used: At 10 minutes and 1.75 V/cell end voltage, the published constant-power rating is 493.2 W/cell.

A 12 V nominal VRLA monobloc contains six 2 V-class cells:

Power per 12HX400 monobloc at the cited rating:
493.2 W/cell × 6 cells = 2,959.2 W

For a 48 V nominal string of four 12 V monoblocs:

Total cells = 4 × 6 = 24 cells
Published 10-minute string power at the cited condition:
493.2 W/cell × 24 cells = 11,836.8 W ≈ 11.84 kW

Illustrative load: 10.0 kW DC battery-side load for 10 minutes.

At the exact published table condition, one four-monobloc series string provides a published rating above the illustrative 10 kW requirement.

Important: This is a screening example only. It does not apply aging, temperature, design margin, UPS conversion losses, string redundancy, recharge requirements, or manufacturer-specific system rules. Those must be applied in a real design.

Engineering lesson: A 20-hour Ah rating does not directly answer whether a battery string can support a short-duration constant-power UPS load.

Source: EnerSys, DataSafe HX & HX Plus Performance Data, constant-power table to 1.75 V/cell at 25°C / 77°F.

Critical Standby Application

Telecommunications

Telecommunications power systems commonly use a nominal −48 V DC architecture. ETSI EN 300 132-2 defines the −48 V DC power-supply interface for ICT equipment, while commercial telecom DC plants integrate rectifiers, battery connections, distribution, control, monitoring, and alarms. [2] [3]

Duty Profile: Standby reserve for communication loads, often with long energized standby periods and site-specific autonomy during loss of AC input.
Electrical Architecture: AC-fed rectifier plant supplies the DC load and battery bus; battery strings support the DC bus when rectifier input is unavailable. Low-voltage disconnect and battery protection may be integrated.
Critical Battery Requirements: DC load, autonomy, end voltage, temperature, aging, system losses, parallel-string behavior, recharge capability, cabinet/rack fit, and remote monitoring.
Technologies Commonly Considered: Stationary lead-acid, nickel-based, and lithium-ion systems depending on site architecture, environment, maintenance model, legacy equipment, and operator standards.
Environmental / Operational Factors: Outdoor cabinet temperature, indoor equipment-room control, ventilation, remote access, rack constraints, maintenance intervals, and outage/recharge patterns.
Common Selection Risks: Ignoring temperature exposure, recharge capability, low-voltage disconnect settings, string current sharing, or remote monitoring requirements.
Engineering Verification: Confirm the actual DC load, required autonomy, rectifier/charger settings, disconnect thresholds, battery operating temperature, string architecture, and manufacturer discharge data.

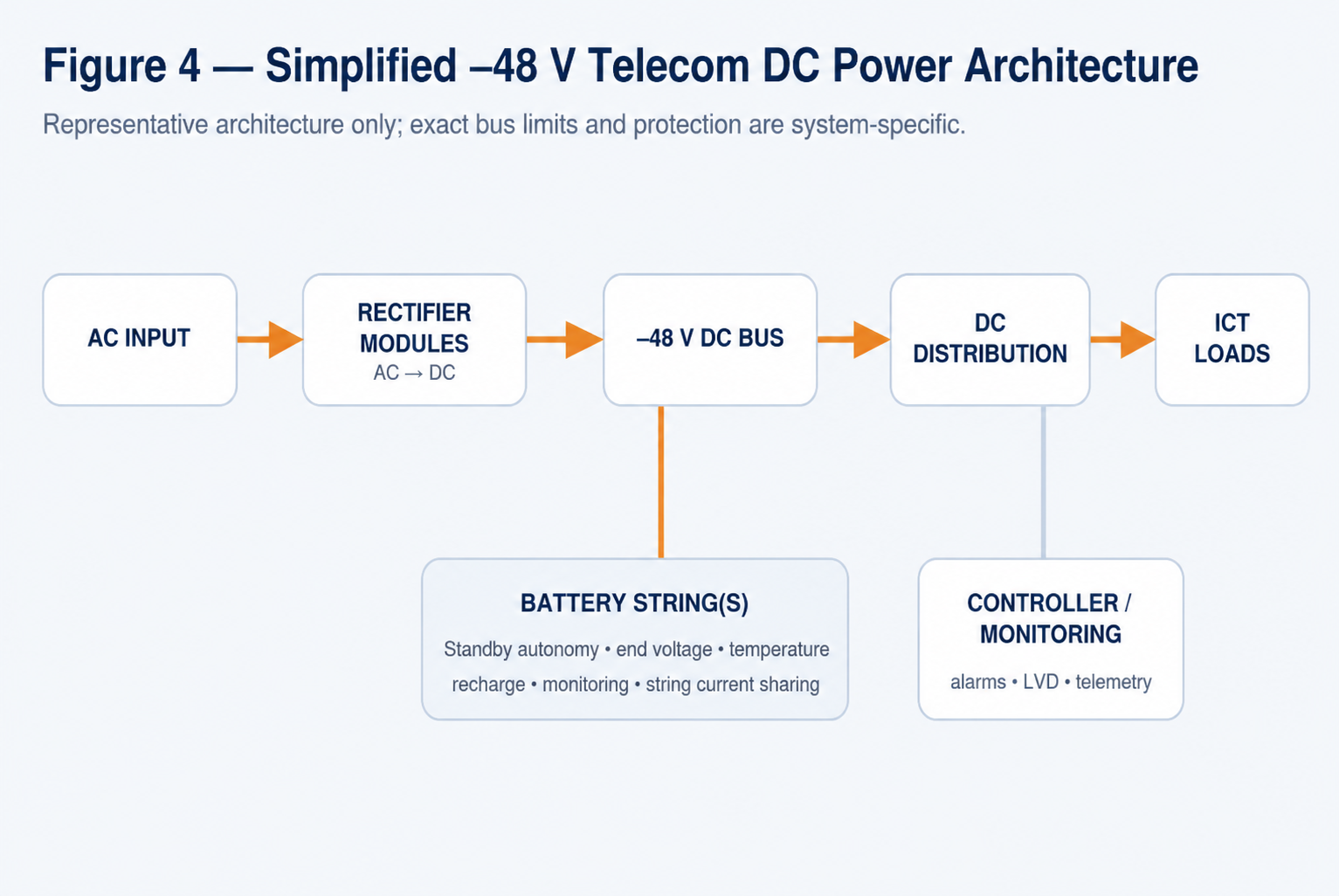

Block diagram of a telecom DC power plant with AC input, rectifiers, minus 48 volt bus, battery strings, controller, distribution, and ICT loads. — **Figure 4 — Simplified −48 V Telecom DC Power Architecture** Representative telecom DC architecture showing rectifiers, −48 V bus, battery strings, monitoring, distribution, and ICT loads.

Worked Engineering Example 2 — Telecom Autonomy

Objective: Show how a telecom standby check can be made against published constant-current data at a defined end voltage and temperature.

Published source: EnerSys PowerSafe V-FT Performance Data, 2022.

Battery used for the example: PowerSafe 12V190F.

Published value used: At 8 hours, 1.80 V/cell end voltage, and 25°C / 77°F, the published constant-current discharge value is 23.77 A.

For a nominal 48 V string using four 12 V monoblocs in series:

Series connection increases string voltage but does not increase Ah/current capability.
The same published 23.77 A discharge current applies to the series string at the cited 8-hour condition.
End voltage for the 24-cell string:
1.80 V/cell × 24 cells = 43.2 V

Illustrative DC load A: 20 A for 8 hours.

Published table screening: 20 A < 23.77 A
At the cited table condition, the string exceeds the illustrative current requirement.

Illustrative DC load B: 25 A for 8 hours.

Published table screening: 25 A > 23.77 A
At the cited table condition, the string does not meet the 25 A requirement.

Important: Real telecom design must account for site temperature, aging/design margin, actual rectifier/bus limits, low-voltage disconnect settings, parallel-string behavior, recharge capability, monitoring, and the operator’s design standard.

Engineering lesson: Telecom autonomy should be checked against the battery manufacturer’s discharge data at the required duration, temperature, and end voltage—not from nominal Ah alone.

Source: EnerSys, PowerSafe V-FT Performance Data, 2022, constant-current discharge table to 1.80 V/cell at 25°C / 77°F.

Life-Safety Standby

Security, Fire Alarm & Life-Safety Standby

Security, fire alarm, emergency lighting, and related life-safety systems use batteries as supervised secondary or standby power sources. Requirements are application- and jurisdiction-specific; battery sizing must follow the equipment listing or manual, governing code or standard, and the authority having jurisdiction. NFPA 72 governs fire alarm and signaling system design, installation, performance, inspection, testing, and maintenance requirements in its scope. [4]

Duty Profile: Long standby with discharge after normal-source loss, followed where applicable by alarm, notification, emergency, or supervised operating load.
Electrical Architecture: Battery connected to a listed or approved panel, fixture, power supply, or secondary-power subsystem with integrated charger and battery supervision.
Critical Battery Requirements: System voltage, required standby and emergency/alarm operation, panel charger capability, battery supervision, enclosure fit, terminals, and approved replacement requirements.
Technologies Commonly Considered: Product-specific lead-acid, nickel-based, or lithium-based batteries and packs where approved by the equipment manufacturer and applicable system requirements.
Environmental / Operational Factors: Enclosure temperature, installation location, inspection/testing access, battery age, charger condition, and system supervision.
Common Selection Risks: Applying a generic runtime assumption, substituting an unapproved chemistry or pack, ignoring charger output, or selecting solely by physical fit and nominal voltage.
Engineering Verification: Use the applicable code/standard, equipment listing and manual, actual standby/alarm loads, required duration, charger rating, and manufacturer replacement instructions.

Mission-Critical Application

Medical & Hospital Critical Power

Medical battery applications include equipment-level batteries as well as facility-level critical-power systems. These should be treated separately because the qualification, charger, monitoring, service continuity, and system architecture can be very different. NFPA 99 addresses health-care facility systems and electrical safety within its scope, while NFPA 110 addresses emergency and standby power-system performance. [5] [6]

Medical Equipment / Mobility Batteries

Duty Profile: Equipment-specific standby, cyclic, mobility, or portable-use duty.
Electrical Architecture: Battery or pack integrated with equipment electronics, charger, protection, and sometimes communication or fuel-gauge functions.
Critical Battery Requirements: Approved replacement, voltage, capacity, pack configuration, terminals/connectors, charger compatibility, mass, dimensions, and monitoring.
Technologies Commonly Considered: AGM, Gel, nickel-based, and lithium-based packs depending on the original equipment design and manufacturer approval.
Environmental / Operational Factors: Service continuity, charging availability, transport, cleaning environment, storage, and equipment maintenance procedures.
Common Selection Risks: Changing chemistry without equipment approval or assuming a generic battery with the same voltage is an equivalent replacement.
Engineering Verification: Follow the device manufacturer’s approved replacement, charger, installation, and service documentation.

Hospital / Facility Critical Backup

Duty Profile: Mission-critical UPS, controls, alarms, communications, transfer support, and other facility-defined critical loads.
Electrical Architecture: Battery-supported UPS and control systems operating within a broader emergency-power architecture that can include engine-generator and transfer equipment.
Critical Battery Requirements: Reliability, redundancy, verified autonomy, monitoring, maintenance, environmental control, replacement planning, and system coordination.
Technologies Commonly Considered: Stationary lead-acid, nickel-based, and lithium-ion systems where supported by the UPS/facility design and applicable requirements.
Environmental / Operational Factors: Controlled temperature, access, service windows, criticality of the supported load, inspection/testing requirements, and maintenance planning.
Common Selection Risks: Treating hospital backup as battery-only, overlooking generator-transfer architecture, or replacing batteries without considering the complete UPS/emergency-power system.
Engineering Verification: Coordinate battery-system requirements with equipment manufacturers, facility engineering, applicable health-care/electrical requirements, and qualified system design review.

High-Availability Standby

Data Infrastructure / Data-Center UPS

Battery engineering for data infrastructure builds on the general UPS requirements but places additional emphasis on availability, redundancy, monitoring, cabinet/rack integration, controlled environmental conditions, maintenance strategy, and coordinated replacement windows. The battery remains part of the UPS system and should be evaluated under the applicable UPS battery guidance. [1]

Duty Profile: High-rate standby with short-runtime or extended-runtime designs depending on the infrastructure strategy and generator/utility architecture.
Electrical Architecture: UPS DC bus with series strings, parallel strings, battery cabinets, or modular battery systems integrated with redundant power paths where applicable.
Critical Battery Requirements: Power capability, end voltage, string/module matching, redundancy, monitoring granularity, thermal environment, maintenance access, and replacement strategy.
Technologies Commonly Considered: High-rate VRLA and lithium-ion systems are common examples, while other stationary technologies can be used where supported by the UPS/system design.
Environmental / Operational Factors: Temperature control, cabinet/rack density, fault isolation, monitoring, maintenance windows, and coordination with generator and UPS operational strategy.
Common Selection Risks: Overlooking single-unit weakness within a string, assuming nameplate Ah predicts short-runtime power, or changing battery architecture without UPS manufacturer review.
Engineering Verification: Verify power, runtime, end voltage, redundancy, environmental assumptions, monitoring, and maintenance criteria against the UPS and battery manufacturer data.

Repeated Cyclic Energy

Solar & Stationary Energy Storage

Solar and stationary storage applications are energy-oriented and often cyclic. Stored energy can shift solar production to a later time or support loads when generation is unavailable. Power-electronic interfaces coordinate charging and discharging between PV, storage, loads, and the grid where applicable. [7] [8]

Duty Profile: Daily or regular charge/discharge, backup reserve, energy shifting, off-grid service, or hybrid operation depending on system objectives.
Electrical Architecture: Battery bank or battery energy-storage system connected through inverter/charger or bidirectional conversion equipment, with BMS/EMS coordination where applicable.
Critical Battery Requirements: Required energy in kWh, peak and continuous power, usable SOC window, DoD, autonomy, inverter/charger efficiency, charge-source variability, cycle duty, and recharge opportunity.
Technologies Commonly Considered: Lead-acid and lithium-ion systems are widely used examples; other stationary technologies can be appropriate depending on project duration, scale, environment, controls, and lifecycle requirements.
Environmental / Operational Factors: Ambient and battery temperature, enclosure, ventilation/thermal management, available solar energy, seasonal variability, site access, and monitoring.
Common Selection Risks: Equating nominal kWh with usable delivered energy, ignoring conversion losses, underestimating recharge energy/time, or failing to account for the permitted SOC window.
Engineering Verification: Use the defined load profile, energy requirement, power requirement, inverter/charger data, battery operating window, temperature assumptions, and manufacturer cycle/charge limits.

Engineering Significance

Nominal stored energy is not equal to usable delivered energy. The usable system boundary depends on the permitted SOC window, voltage profile, power conversion, controls, temperature, and operating strategy.

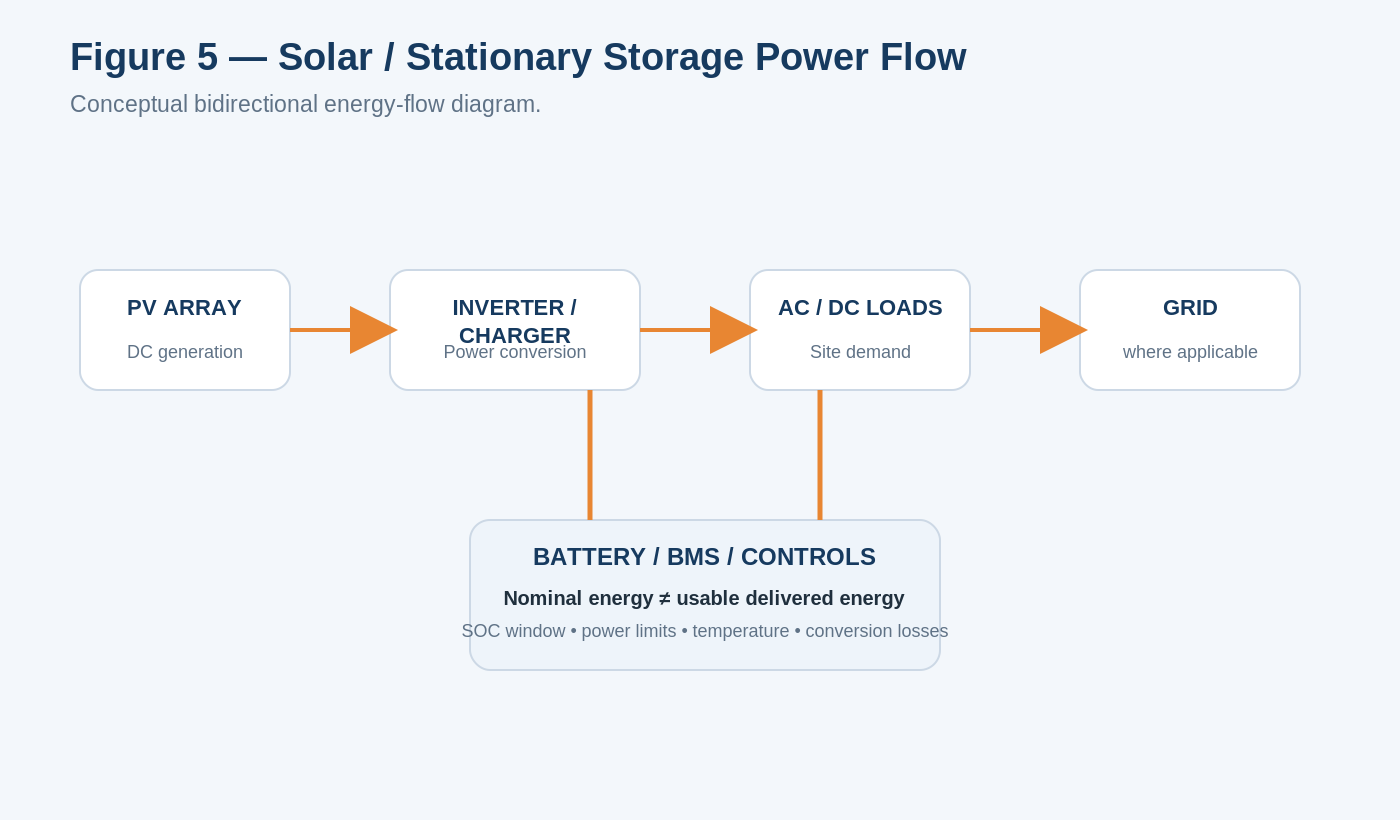

Solar and battery storage power-flow diagram showing PV, inverter charger, battery and BMS, loads, and grid. — **Figure 5 — Solar / Stationary Storage Power Flow** Conceptual energy-flow relationship among PV generation, inverter/charger, battery storage, site loads, and grid connection where applicable.

Worked Engineering Example 3 — Stationary Storage Energy Sizing

Objective: Show the relationship between required delivered energy, usable SOC window, and conversion efficiency.

Illustrative project assumptions — NOT universal battery ratings:

Required AC energy delivered to the load: 10.0 kWh
Allowed battery usable SOC window: 80%
Inverter discharge efficiency used for the example: 94%

Required nominal battery energy:

E_nominal = E_AC,required / (usable SOC fraction × inverter efficiency)

E_nominal = 10.0 kWh / (0.80 × 0.94)

E_nominal = 13.30 kWh

So, under these explicitly stated assumptions, the battery would require at least 13.3 kWh nominal energy before adding any project-specific allowances for temperature, aging, reserve capacity, auxiliary consumption, reliability, or other system losses.

Engineering lesson: Nominal battery kWh is not the same as usable AC energy delivered to the load.

DOE solar-plus-storage references support the system concept that storage is integrated with power-conversion equipment; the 80% SOC window and 94% inverter efficiency are illustrative design assumptions for this worked example, not DOE-prescribed values.

Motive / Traction Duty

Forklifts & Industrial Motive Power

Motive batteries are part of the vehicle system and can influence runtime, peak power, charging strategy, thermal behavior, compartment fit, connector compatibility, and—in some trucks—vehicle mass distribution or counterbalance requirements. OSHA 29 CFR 1910.178(g) addresses battery changing and charging practices for powered industrial trucks. [9]

Duty Profile: Repeated traction cycles across a shift, including acceleration, travel, lifting, hydraulic loads, idle periods, and recharge opportunities.
Electrical Architecture: Vehicle traction controller and auxiliary loads connected to a battery pack through application-specific connectors, cables, protection, and charger interface.
Critical Battery Requirements: System voltage, Ah/kWh requirement, peak current, shift duty, charge window, battery mass, compartment dimensions, connectors, cable position, and thermal limits.
Technologies Commonly Considered: Flooded industrial lead-acid, VRLA/TPPL, and lithium-ion motive systems depending on fleet duty, charging strategy, truck integration, and manufacturer support.
Environmental / Operational Factors: Temperature, vibration, battery-changing practices, maintenance, watering/electrolyte management where applicable, and BMS/communications for lithium systems.
Common Selection Risks: Matching only voltage and Ah while ignoring pack mass, truck balance, connector position, charger compatibility, peak duty, compartment fit, or communications.
Engineering Verification: Confirm the truck and charger documentation, battery compartment, required mass range where applicable, connector/cable arrangement, duty cycle, and battery/charger compatibility.

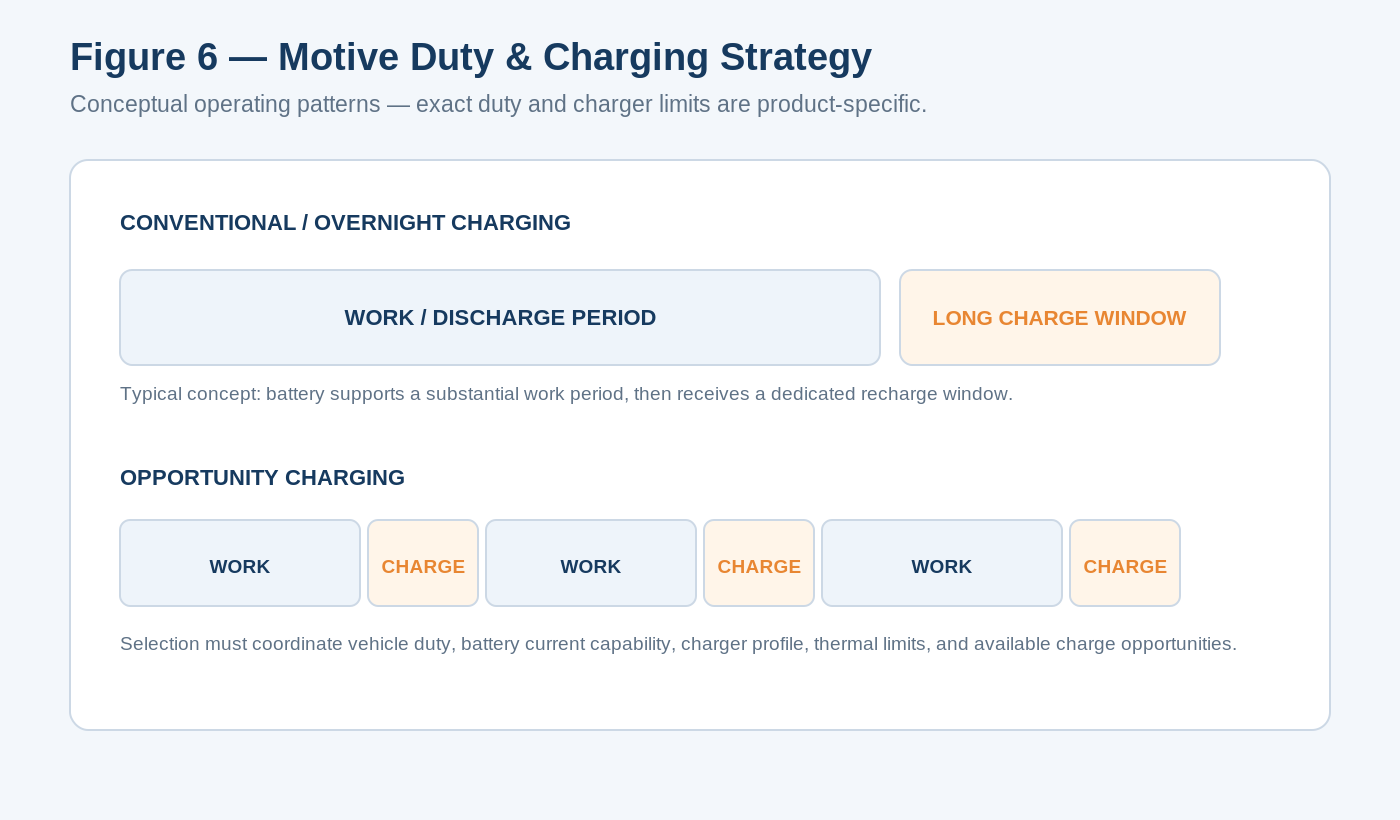

Opportunity and conventional charging strategies impose different operating patterns. EnerSys motive-power charger documentation, for example, distinguishes charging profiles and charging opportunities as part of the battery/charger system design rather than treating the charger as interchangeable across all battery systems. [10]

Timeline comparing a long work period followed by overnight charging with repeated work and opportunity-charge intervals. — **Figure 6 — Motive Duty & Charging Strategy** Conceptual comparison of conventional long-window charging and opportunity charging. Exact charge limits and duty patterns are product-specific.

Cyclic Traction

Golf Carts & Low-Speed Electric Vehicles

Golf-cart and low-speed EV battery systems are repeated-cycle traction packs. Range and performance depend on the complete vehicle and duty profile rather than the pack Ah value alone.

Duty Profile: Repeated driving cycles with sustained energy demand and short peak-current events during acceleration, grade, or higher mechanical load.
Electrical Architecture: Series-connected battery pack or integrated lithium pack feeding the traction controller and vehicle DC system.
Critical Battery Requirements: Pack voltage, Ah and nominal kWh, sustained and peak current, usable SOC, controller limits, cycle duty, cable/connector rating, and charger compatibility.
Technologies Commonly Considered: Flooded deep-cycle lead-acid, AGM, and lithium-ion/LFP systems depending on vehicle and charger design. Trojan identifies repeated discharge/recharge as a defining deep-cycle duty across golf, marine/RV, and renewable applications. [11]
Environmental / Operational Factors: Terrain, passenger or cargo load, ambient temperature, storage condition, charge opportunity, battery mass, and service access.
Common Selection Risks: Assuming the same pack voltage guarantees compatibility, ignoring controller peak demand, or changing chemistry without charger/BMS/integration review.
Engineering Verification: Confirm vehicle voltage architecture, controller and charger requirements, battery compartment, cable/connectors, pack current capability, and manufacturer-approved integration.

Pack nominal energy ≈ pack nominal voltage × pack Ah

This is a nominal-energy relationship only; usable delivered energy depends on voltage profile, SOC window, current, temperature, conversion losses, and system limits.

Mixed Starting & Cyclic Duty

Marine Applications

Marine battery systems frequently combine two distinct duties: engine starting and cyclic house or auxiliary loads. A battery that is optimized for one duty should not automatically be assumed suitable for the other.

Engine Starting

Starting banks prioritize short-duration cranking current, reliable engine start, charging compatibility, physical fit, terminals, isolation, and the marine environment.

House / Auxiliary Loads

House banks support electronics, lighting, pumps, refrigeration, communications, and other cyclic loads. Usable energy, recharge sources, SOC window, and repeated-cycle performance become more important than cranking capability.

Duty Profile: Starting, cyclic house service, or intentionally engineered dual-purpose operation.
Electrical Architecture: Single or multiple banks with alternator charging, shore charger, isolation/combining equipment, and sometimes solar or inverter/charger integration.
Critical Battery Requirements: Starting current or house energy as applicable, system voltage, isolation strategy, charge-source compatibility, terminals, ventilation, and installation constraints.
Technologies Commonly Considered: Flooded, AGM, and lithium-based systems depending on the bank duty and approved charging/integration architecture. Trojan publishes separate marine/RV application datasheets for deep-cycle products. [11]
Environmental / Operational Factors: Vibration, corrosion, moisture, temperature, ventilation, confined installation spaces, and service access.
Common Selection Risks: Using one generic battery for starting and house duty without checking its actual design objective or charge system.
Engineering Verification: Confirm starting and house loads separately, alternator/shore charger settings, isolation/protection, installation requirements, and battery manufacturer guidance.

Repeated Cyclic Energy

RV Applications

RV house batteries support DC loads and inverter loads while interacting with shore power, alternator or DC-DC charging, and often solar charging. The system is therefore both an energy-storage and charging-integration problem.

Duty Profile: Cyclic house loads with intermittent inverter peaks and variable recharge opportunities.
Electrical Architecture: House battery bank connected to converter/charger or inverter/charger, DC distribution, solar controller where installed, and alternator/DC-DC charging where used.
Critical Battery Requirements: Usable energy, inverter power demand, system voltage, SOC window, compartment constraints, temperature, charge-source compatibility, and BMS integration where applicable.
Technologies Commonly Considered: Deep-cycle flooded/AGM and lithium-ion/LFP systems depending on the RV electrical architecture and charger capability.
Environmental / Operational Factors: Seasonal temperature, storage, ventilation, vehicle vibration, solar availability, shore-power access, and charge-source behavior.
Common Selection Risks: Changing chemistry without adjusting charger profiles, ignoring low-temperature charge restrictions for the selected lithium product, or sizing from Ah without inverter/peak-load review.
Engineering Verification: Confirm every charging source and BMS requirement against the exact battery manual. Victron, for example, requires a charger profile/algorithm compatible with the selected lithium battery chemistry and manages charge permissions through BMS temperature/voltage limits. [12]

High-Rate Starting Duty

Automotive Starting

Automotive starting batteries are optimized primarily for short-duration engine cranking and recovery under the vehicle charging system. They should be selected against the vehicle manufacturer’s electrical and fitment requirements rather than as generic deep-cycle storage batteries.

Duty Profile: High-current SLI/cranking duty with shallow discharge in normal operation.
Electrical Architecture: Battery, starter, alternator or charging system, vehicle distribution, and control electronics.
Critical Battery Requirements: CCA, reserve capacity where relevant, group size, terminal orientation, hold-down, charging compatibility, and start-stop requirements where applicable.
Technologies Commonly Considered: Vehicle-approved flooded, enhanced flooded, AGM, or other manufacturer-specified battery technology.
Environmental / Operational Factors: Cold cranking temperature, under-hood heat, vibration, vehicle electronics, and periods of low usage.
Common Selection Risks: Incorrect group size, terminal layout, CCA class, start-stop technology, or charging-system compatibility.
Engineering Verification: Follow the vehicle manufacturer’s battery specification and replacement/registration procedure where applicable.

Mixed Starting & Auxiliary Duty

Commercial Vehicles

Commercial vehicles can combine engine starting with hotel loads, liftgate or APU loads, telematics, refrigeration controls, lighting, radios, tools, and other auxiliaries. The battery bank must therefore be evaluated against both cranking and reserve/cyclic demand.

Duty Profile: Starting plus vehicle-specific auxiliary loads, often with periods of engine-off operation.
Electrical Architecture: Single or multiple battery banks tied to alternator, isolator, DC distribution, auxiliary loads, and sometimes shore or DC-DC charging.
Critical Battery Requirements: Starting demand, reserve/cyclic load, charging capacity, bank configuration, group size, terminals, vibration durability, and fleet standardization.
Technologies Commonly Considered: Heavy-duty flooded or AGM starting/dual-purpose products and dedicated auxiliary/deep-cycle banks depending on vehicle design.
Environmental / Operational Factors: Heat, cold, vibration, idle time, maintenance access, fleet usage pattern, and charging-system condition.
Common Selection Risks: Undersizing reserve duty, mixing mismatched batteries within a bank, or ignoring alternator/auxiliary charging behavior.
Engineering Verification: Confirm vehicle and auxiliary load requirements, charging system, bank configuration, fitment, and fleet maintenance procedures.

Mission-Critical Vehicle Duty

Emergency Response Vehicles

Emergency-response vehicles combine starting reliability with unusually important auxiliary loads such as radios, lighting, computers, sirens, communications, medical equipment, and powered accessories. Battery-system readiness must therefore be evaluated at the vehicle-system level.

Duty Profile: Starting plus high auxiliary electrical demand during idle, engine-off periods, response, and standby.
Electrical Architecture: Vehicle starting bank and/or auxiliary bank integrated with alternator, isolators, distribution, shore charger, and monitoring as installed.
Critical Battery Requirements: Starting reliability, reserve energy, auxiliary peak load, charge recovery, redundancy, monitoring, and service readiness.
Technologies Commonly Considered: Heavy-duty lead-acid/AGM and other vehicle-approved technologies, with dedicated auxiliary storage where the vehicle architecture requires it.
Environmental / Operational Factors: Temperature, vibration, idle time, high accessory use, shore-power practices, maintenance scheduling, and dispatch readiness.
Common Selection Risks: Assuming starting-battery capacity alone covers prolonged auxiliary demand or failing to coordinate charging and bank isolation.
Engineering Verification: Measure or define the vehicle load profile and confirm alternator, shore-charger, isolation, reserve, and maintenance requirements with the vehicle/system documentation.

Equipment-Specific Duty

Industrial Equipment

Industrial equipment spans control-power standby, engine starting, portable/mobile power, floor equipment, access platforms, carts, machinery backup, and specialized cyclic loads. The equipment duty cycle and original system design determine the battery requirements.

Duty Profile: Application-specific: standby, high-rate, repeated cycle, starting, or mixed duty.
Electrical Architecture: Battery integrated with equipment controls, traction system, starter, charger, converter, protection, and connectors as applicable.
Critical Battery Requirements: Voltage, capacity/energy, discharge rate, dimensions, terminals/connectors, weight, charger compatibility, and duty-cycle capability.
Technologies Commonly Considered: Lead-acid, lithium-ion, nickel-based, and equipment-specific battery packs depending on the machine design and service duty.
Environmental / Operational Factors: Temperature, vibration, contaminants, operator charging practices, maintenance, storage, and equipment utilization.
Common Selection Risks: Using a generic battery without checking equipment documentation, duty cycle, charger, connector, weight, or mechanical constraints.
Engineering Verification: Confirm the equipment model, battery specification, charger, operating duty, environment, installation constraints, and approved replacement instructions.

Application Engineering Matrix

The matrix compares the engineering method used to evaluate different applications. Duration descriptions are intentionally qualitative because exact autonomy and discharge time are system-specific.

Table 1 — Battery Application Engineering Matrix
Application	Primary Duty	Typical Discharge Duration	Key Rating Method	Critical Environmental Factor	Charging Architecture	Main Selection Risk
UPS / data infrastructure	High-rate standby	Short duration to extended runtime; system-specific	Manufacturer constant-power/runtime data to specified end voltage	Battery temperature	UPS rectifier/charger	Sizing from Ah alone or mismatched strings
Telecom	Standby / reserve	Hours; site-specific	DC load and autonomy using end-voltage/temperature-specific battery data	Outdoor or cabinet temperature	−48 V rectifier / battery bus	Ignoring temperature, recharge, disconnect, or monitoring
Security / fire / life safety	Standby plus emergency/alarm duty	Code, listing, and equipment-specific	Equipment/manual and governing requirement	Enclosure / installation environment	Panel-integrated charger	Unapproved substitution or generic runtime assumption
Medical / hospital critical	Mission-critical standby or equipment duty	System-specific	Equipment/UPS/facility design requirement	Service continuity and controlled environment	Equipment charger, UPS, or emergency-power architecture	Changing battery without system qualification
Solar / stationary storage	Repeated cyclic energy	Hours / repeated cycle; system-specific	Usable kWh plus power and SOC-window analysis	Temperature / site exposure	Bidirectional inverter/charger or DC-coupled architecture	Confusing nominal with usable energy
Forklift / industrial motive	Traction cycling	Shift/duty dependent	Ah/kWh plus peak power and duty-cycle analysis	Temperature / vibration	Overnight, opportunity, or application-specific charger	Voltage/Ah match without weight, connector, or charger review
Golf cart / low-speed EV	Cyclic traction	Trip/duty dependent	Pack voltage, nominal energy, sustained/peak current	Temperature / terrain	Vehicle charger	Chemistry, controller, or charger mismatch
Marine	Starting and/or cyclic house duty	Short cranking or cyclic house duration	Starting current or usable house energy as applicable	Moisture / corrosion / vibration	Alternator, shore charger, solar where installed	Using one battery design for incompatible duties
RV	Repeated cyclic energy	Hours / trip-specific	Usable Wh/kWh plus inverter peak demand	Temperature / storage	Shore, solar, alternator/DC-DC charging	Charge-profile or low-temperature incompatibility
Automotive	Starting / SLI	Short-duration cranking	Vehicle-specified starting and fitment ratings	Cold / under-hood heat	Vehicle alternator/charging system	Wrong battery technology, group, or terminal layout
Commercial / emergency vehicle	Starting plus auxiliary reserve	Mixed and vehicle-specific	Cranking plus engine-off auxiliary load profile	Temperature / vibration	Alternator plus auxiliary/shore charging where installed	Undersized reserve or inadequate charge recovery
Industrial equipment	Standby, starting, cyclic, or mixed	Equipment-specific	Equipment manufacturer data and measured/defined duty	Temperature / vibration / contaminants	Integrated or external application charger	Assuming a generic battery is interchangeable

Battery Application Selection Engineering Flow

Chemistry should be evaluated after the application requirements have been defined. Starting with chemistry can prematurely exclude suitable technologies or force an unsuitable product into the wrong duty profile.

Figure 7 — Battery Application Selection Engineering Flow Application requirements should be defined before evaluating chemistry and product options.

Technical Interpretation Notes

Is Ah alone enough to size a battery system?

No. Power, end voltage, discharge duration, temperature, SOC window, efficiency, aging, and system architecture can all change the required battery.

Is runtime simply Ah ÷ load current?

Only as a rough idealized estimate for a simple constant-current case. Real runtime depends on voltage behavior, cutoff, rate, temperature, losses, and battery-specific discharge data.

Can UPS batteries be sized from a 20-hour Ah rating?

Not reliably for short-duration high-power duty. UPS sizing should use manufacturer constant-power or application-specific discharge data at the required end voltage and temperature.

Does equal system voltage mean replacement batteries are interchangeable?

No. Capacity, power capability, charge method, dimensions, terminals, BMS/protection, temperature limits, approvals, and system integration can differ.

Is the largest Ah battery always better?

No. A larger battery can exceed charger capability, space or mass limits, alter recharge time, or be inappropriate for the required power and duty profile.

Can a standby battery automatically be used for deep cycling?

No. Standby and repeated-cycle products can use the same broad chemistry but different plate, construction, control, and life-design priorities.

Is nominal kWh equal to usable delivered kWh?

No. Usable energy depends on the allowed SOC/DoD window, voltage profile, current, cutoff, temperature, conversion losses, controls, and battery age.

Can a different chemistry use the existing charger without engineering review?

No. Charge voltage, algorithm, temperature behavior, termination, current limits, BMS/protection, and float suitability can be chemistry- and product-specific.

Technical Application Summary

Application duty determines which battery performance data are relevant.
Short-duration high-power systems require different ratings from long-duration energy applications.
Amp-hours alone do not define system runtime or application suitability.
Standby, cyclic, motive, starting, and mission-critical applications impose different battery design and integration requirements.
Temperature changes available power, capacity, charging behavior, and aging and must be treated as an application variable.
Battery replacement must account for charger, rectifier, inverter, controller, BMS, protection, and equipment compatibility.
Mission-critical applications require monitoring, maintenance, fault detection, reliability, and redundancy considerations in addition to battery capacity.
Nominal energy or capacity should not be substituted for manufacturer performance data under the actual discharge conditions.
Mechanical fit, mass, terminals, connectors, vibration, ventilation, and service access can be as important as chemistry.
Final selection should be verified against current manufacturer data, equipment documentation, and application-specific requirements.

Technical References

IEEE Standards Association, IEEE 1184-2022 — IEEE Guide for Batteries for Uninterruptible Power Supply Systems. IEEE standard
ETSI, EN 300 132-2 V2.8.1 (2024-10), Environmental Engineering (EE); Power supply interface at the input of Information and Communication Technology (ICT) equipment; Part 2: −48 V Direct Current (DC). ETSI standard
Vertiv, NetSure 2100 Series −48 VDC Power System User Manual, Specification No. 582138000; integrated rectification, control, metering, monitoring, battery connection, and distribution architecture. Manufacturer manual
National Fire Protection Association, NFPA 72 — National Fire Alarm and Signaling Code, 2025 edition/current code resource. NFPA reference
National Fire Protection Association, NFPA 99 — Health Care Facilities Code, 2024 edition/current code resource. NFPA reference
National Fire Protection Association, NFPA 110 — Standard for Emergency and Standby Power Systems, current edition 2025. NFPA reference
U.S. Department of Energy, Solar Integration: Solar Energy and Storage Basics. DOE reference
U.S. Department of Energy, Solar Integration: Inverters and Grid Services Basics. DOE reference
U.S. Occupational Safety and Health Administration, 29 CFR 1910.178 — Powered Industrial Trucks, including paragraph (g) battery changing and charging requirements. OSHA regulation
EnerSys, Motive Power Battery Charging Redefined, motive-power charger product guide; charging profiles and opportunity/fast-charging application considerations. Manufacturer guide
Trojan Battery Company, Selecting Deep Cycle Flooded Batteries and current application/support resources covering repeated discharge/recharge duty and equipment compatibility. Manufacturer reference
Victron Energy, Lithium Battery Smart Manual; BMS integration, charger profile/algorithm compatibility, operating limits, and charge-control requirements. Manufacturer manual

Standards Note

Application-specific safety, installation, transportation, listing, inspection, testing, maintenance, and performance requirements depend on battery chemistry, system design, jurisdiction, equipment, and application. Applicable IEC, IEEE, NFPA, UL, OSHA, transportation, manufacturer, and local requirements should be identified for the specific project rather than assumed from a generic battery category.

Last technical review: August 2026

Get a Quote

Battery Application Engineering Framework

Application Duty Classification

Standby / Reserve

High-Rate / Short Duration

Repeated Cyclic Energy

Motive / Traction

Mission-Critical

Load Profile, Power & Runtime

UPS Systems

Telecommunications

Security, Fire Alarm & Life-Safety Standby

Medical & Hospital Critical Power

Medical Equipment / Mobility Batteries

Hospital / Facility Critical Backup

Data Infrastructure / Data-Center UPS

Solar & Stationary Energy Storage

Forklifts & Industrial Motive Power

Golf Carts & Low-Speed Electric Vehicles

Marine Applications

Engine Starting

House / Auxiliary Loads

RV Applications

Automotive Starting

Commercial Vehicles

Emergency Response Vehicles

Industrial Equipment

Application Engineering Matrix

Battery Application Selection Engineering Flow

Technical Interpretation Notes

Is Ah alone enough to size a battery system?

Is runtime simply Ah ÷ load current?

Can UPS batteries be sized from a 20-hour Ah rating?

Does equal system voltage mean replacement batteries are interchangeable?

Is the largest Ah battery always better?

Can a standby battery automatically be used for deep cycling?

Is nominal kWh equal to usable delivered kWh?

Can a different chemistry use the existing charger without engineering review?

Technical Application Summary

Technical References
