The Critical Role of UPS Battery Systems in Healthcare Compliance

In healthcare facilities, electrical power continuity is directly linked to patient safety. Medical equipment operating in intensive care units (ICUs), surgical suites, diagnostic centers, and electronic health record (EHR) server rooms cannot tolerate even momentary power disruptions. While emergency standby generators provide essential long-term backup power, standard safety codes allow diesel and gaseous generators up to 10 seconds to start, reach rated speed, and accept load transfer.

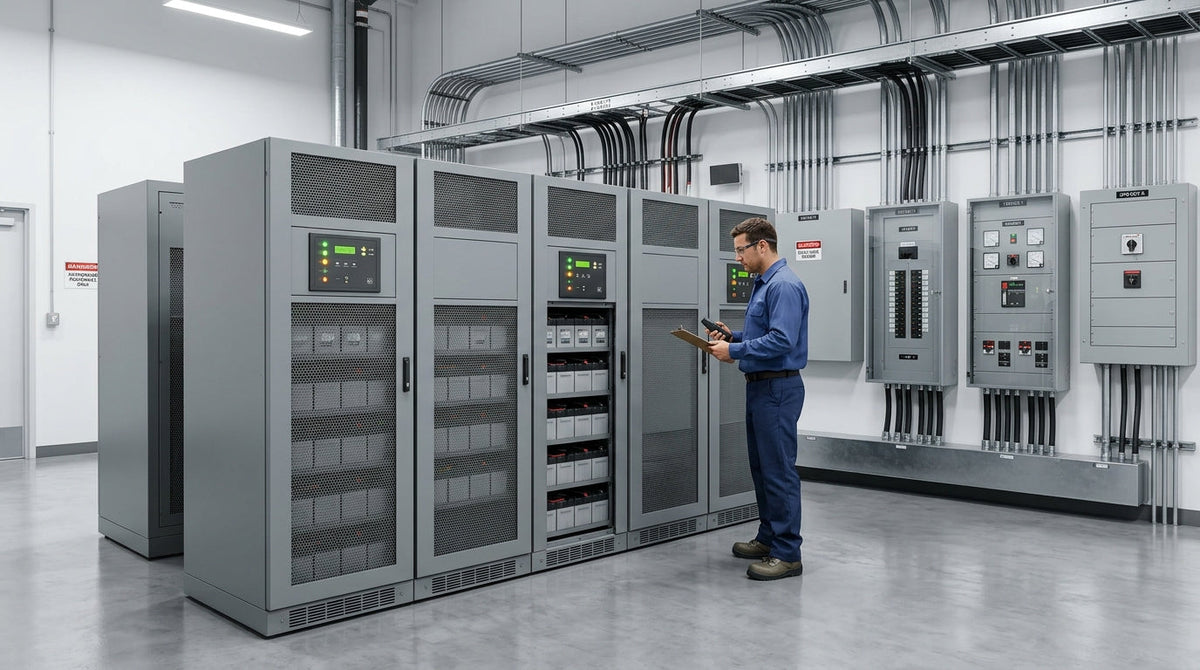

Uninterruptible Power Supply (UPS) systems bridge this critical 0-to-10 second gap, delivering instantaneous backup power to mission-critical healthcare equipment. However, integrating UPS backup batteries into healthcare environments requires strict adherence to regulatory standards. The primary technical code governing these installations is NFPA 99: Health Care Facilities Code, working in tandem with NFPA 110 (Standard for Emergency and Standby Power Systems), NFPA 111 (Standard on Stored Electrical Energy Emergency and Standby Power Systems), and National Electrical Code (NEC) Article 517.

This guide examines the core NFPA 99 compliance requirements for healthcare UPS battery systems, helping facility managers, biomedical engineers, and infrastructure directors navigate risk categorization, battery chemistry selection, sizing methodology, and maintenance schedules.

NFPA 99 Risk Categories and System Architecture

NFPA 99 establishes a risk-based framework for evaluating facility spaces and electrical infrastructure. Rather than treating all healthcare areas identically, the standard assigns risk categories based on the potential impact of equipment failure on patients, staff, and visitors:

• Category 1 (High Risk): Spaces where failure of equipment or systems is likely to cause major injury or death to patients or caregivers. Examples include operating rooms, cardiac cath labs, intensive care units, and post-anesthesia care units.
• Category 2 (Medium Risk): Spaces where equipment failure is likely to cause minor injury to patients or staff. Examples include patient procedure rooms and general care beds.
• Category 3 (Low Risk): Spaces where equipment failure is unlikely to cause injury but may cause patient discomfort.
• Category 4 (No Impact): Spaces where system failure has no direct impact on patient care.

Within the Essential Electrical System (EES) of Category 1 and Category 2 facilities, power distribution is split into three main branches: the Life Safety Branch, the Critical Branch, and the Equipment Branch. Type 1 EES standards mandate that alternate power sources restore power to critical and life safety loads within 10 seconds (Type 10). UPS systems installed on these branches ensure zero-millisecond power transfer for sensitive electronic medical devices, laboratory analyzers, and healthcare IT infrastructure during the generator start window.

Stored Electrical Energy Systems: NFPA 111 and Patient Safety Standards

When a UPS serves as a dedicated emergency power supply for critical loads, it falls under the purview of NFPA 111 for Stored Electrical Energy Emergency and Standby Power Systems (SEPSS). Compliance with NFPA 111 requires specific system classifications based on Type (maximum interruption time allowed), Class (minimum runtime in hours or minutes at full load), and Level (criticality to life safety).

Chassis Leakage Current and Patient Care Vicinity

A crucial technical requirement in NFPA 99 Chapter 10 involves electrical safety for equipment located within the Patient Care Vicinity—defined as the space within 6 feet (1.8 meters) of the perimeter of the bed, table, or structure supporting the patient. Any cord-connected electrical equipment, including portable UPS units deployed in patient care areas, must conform to strict chassis leakage current thresholds (typically not exceeding 300 µA under standard operating conditions) to protect patients against microshock hazards.

Evaluating Battery Chemistries: AGM vs. LiFePO4 for Healthcare UPS

Selecting the appropriate battery chemistry for healthcare UPS systems involves balancing reliability, thermal safety, space constraints, maintenance demands, and compliance requirements. Absorbed Glass Mat (AGM) valve-regulated lead-acid (VRLA) batteries and Lithium Iron Phosphate (LiFePO4) batteries represent the two leading technologies in commercial applications.

AGM/VRLA batteries remain widely utilized due to their lower initial capital expenditure, predictable failure modes, and long history of compliance within healthcare facilities. However, they carry high weight penalties and shorter service lives under continuous float service conditions.

LiFePO4 batteries provide higher energy density, lower total weight, and extended cycle life, making them attractive for facilities with tight physical footprints or elevated cabinet temperatures. However, healthcare specifiers must ensure that lithium systems include robust, UL-listed Battery Management Systems (BMS) capable of cell balancing, thermal monitoring, and fault isolation.

Critical Integration Note: Lithium iron phosphate batteries cannot be retrofitted into existing lead-acid UPS cabinets solely because their nominal DC voltage appears similar. Replacement decisions must strictly align with UPS manufacturer specifications, charger profile compatibility, DC bus voltage windows, and local fire code thermal safety rules.

UPS Battery Sizing Engineering: Beyond Nominal Amp-Hour Capacity

A frequent error in commercial battery replacement is relying solely on nominal Amp-Hour (Ah) ratings. In high-rate UPS discharge applications typical of healthcare emergency power, nominal Ah ratings (often measured over a 20-hour discharge rate) do not reflect actual runtime under heavy discharge conditions.

Proper UPS battery sizing must account for multiple technical variables:

• Constant Power Discharge Rates (kW/cell): UPS inverters draw constant power, meaning current increases as battery voltage drops during discharge. Sizing must be calculated using manufacturer constant-power tables for the specific discharge duration (e.g., 5, 10, or 15 minutes).
• Inverter & System Efficiency: Inverter losses (typically 88% to 95% efficiency depending on topology and load percentage) must be included in the total DC load calculation.
• Minimum End-of-Discharge Voltage (VPC): The battery bank must sustain system load down to the UPS cut-off voltage without dropping below minimum safe volts per cell (typically 1.60V to 1.75V per cell for VRLA).
• Ambient Temperature Correction: Standard battery performance is rated at 25°C (77°F). Battery capacity must be derated if installed in cooler operating environments.
• Aging & End-of-Life Buffers: IEEE recommendations specify replacing UPS battery strings when capacity drops to 80% of rated value. Sizing calculations should incorporate a design buffer to maintain full compliance throughout the battery's service life.

Testing, Maintenance, and Compliance Inspections

Healthcare accrediting bodies, such as The Joint Commission (TJC) and the Centers for Medicare & Medicaid Services (CMS), strictly enforce maintenance and testing logs for emergency power equipment. Non-compliance can lead to survey deficiencies (such as CMS K-Tags) or loss of accreditation.

• Visual & Mechanical Inspections: Monthly checks for casing swelling, terminal corrosion, connection torque integrity, and ambient room temperature controls.
• Internal Resistance / Impedance Testing: Quarterly or semi-annual baseline measurements to detect internal degradation before catastrophic cell failure occurs.
• Capacity & Discharge Load Testing: Periodic discharge testing under controlled loads to verify actual runtime against NFPA 111 and manufacturer benchmarks.
• Environmental & Battery Room Ventilation: Compliance with NFPA 1, NFPA 70, and OSHA standards regarding continuous hydrogen gas ventilation for flooded/VRLA battery installations and spill containment where applicable.

Healthcare Facility UPS Battery Buyer Checklist

Use this decision framework when evaluating replacement battery strings or specifying new UPS installations for healthcare facilities:

1. Identify Space Risk Category: Verify whether the UPS serves Category 1, 2, 3, or 4 spaces and confirm branch connectivity (Life Safety vs. Critical Branch).
2. Review Code & Standard Scope: Ensure system design complies with NFPA 99, NFPA 110, NFPA 111, and NEC Article 517 requirements.
3. Verify Chassis Leakage Compliance: For equipment within the patient care vicinity, confirm chassis leakage current meets NFPA 99 limits (<300 µA).
4. Calculate Load Requirements: Determine total peak kW/kVA load, inverter efficiency, DC bus operating range, and required runtime duration.
5. Evaluate Battery Chemistry: Compare AGM and LiFePO4 options based on footprint, weight, ambient conditions, thermal safety listings (UL 1973), and total cost of ownership.
6. Confirm Charger & BMS Compatibility: Ensure battery string characteristics, float voltage charging curves, and BMS communication interfaces match the specific UPS model.
7. Establish Testing Protocols: Put in place documented maintenance schedules for impedance testing, visual inspections, and annual runtime verification.
